Products > COG > > 160x96 LCD Display Module

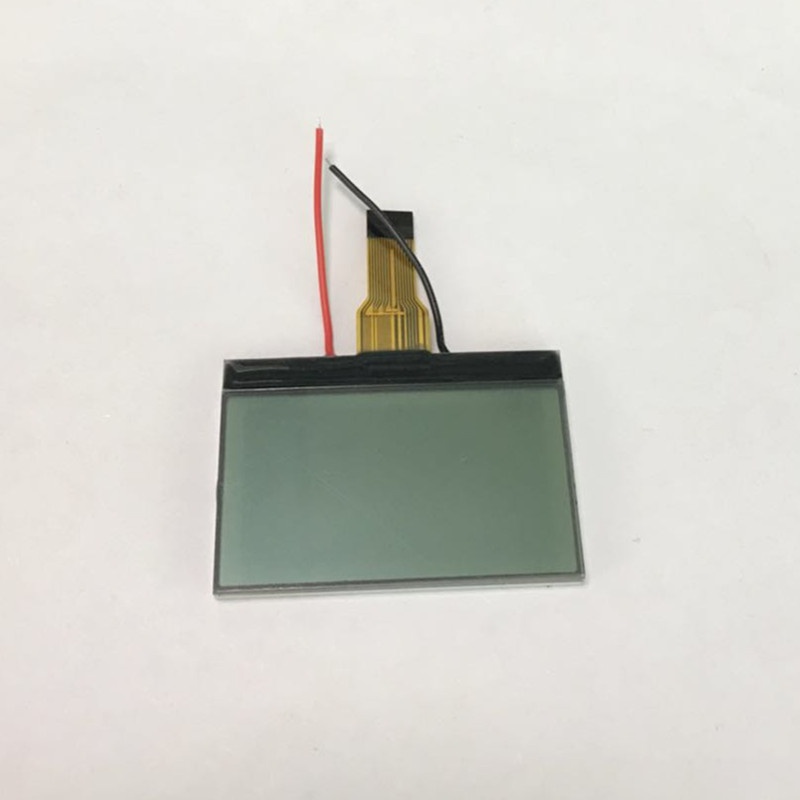

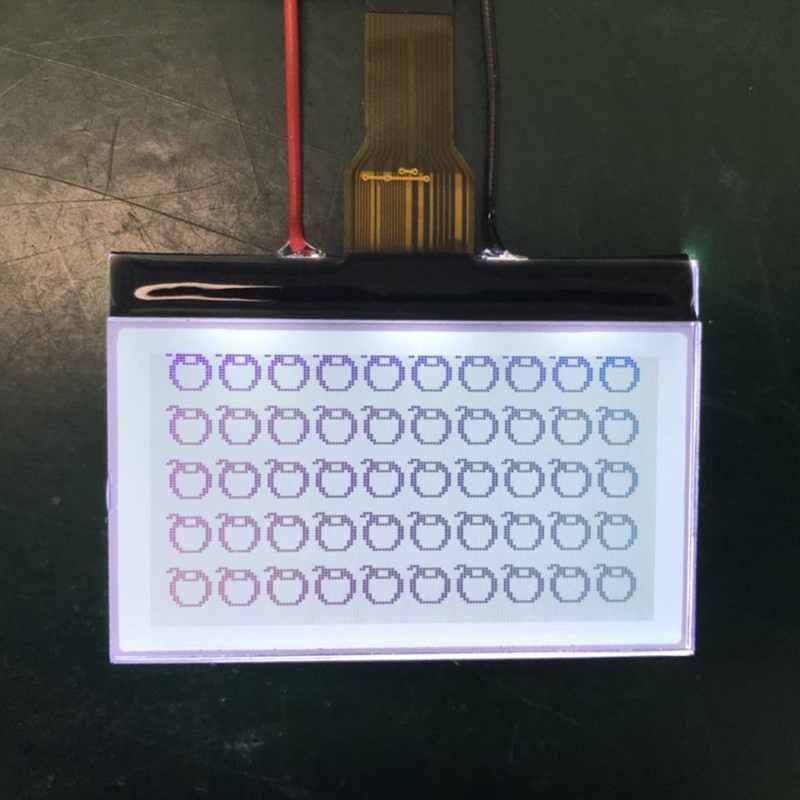

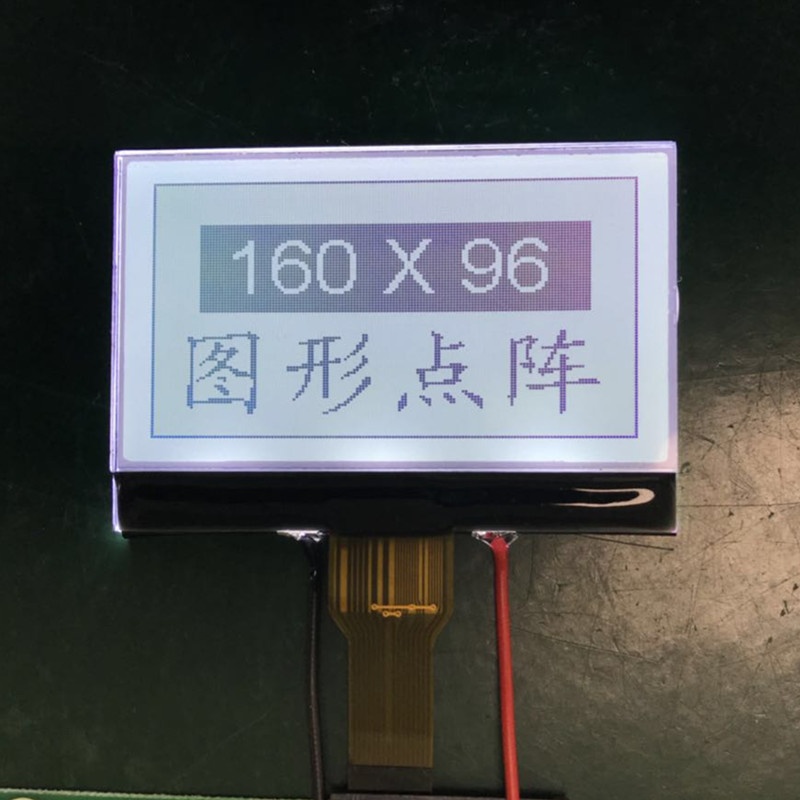

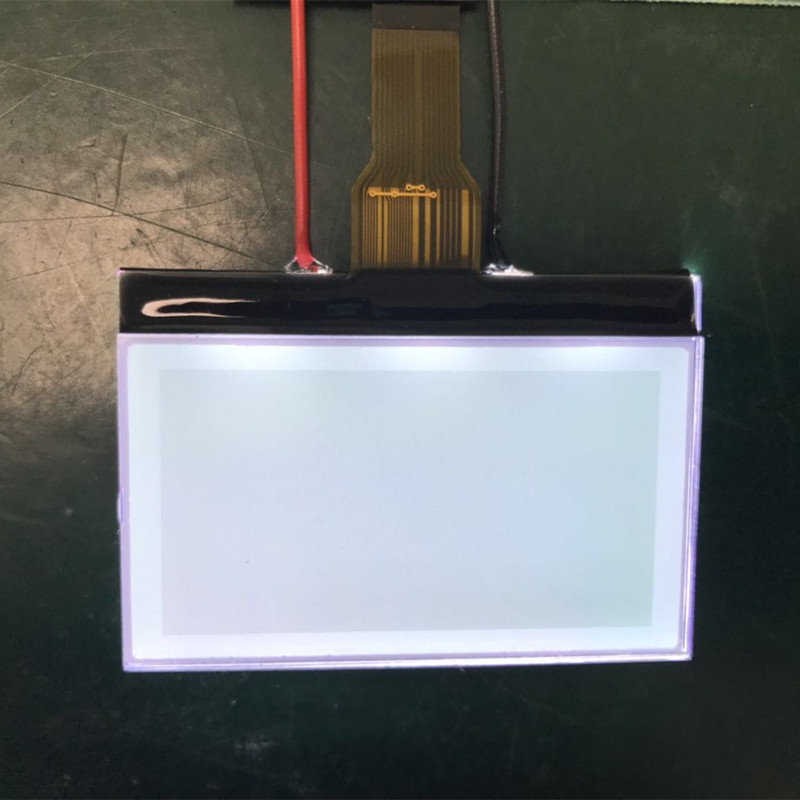

160x96 LCD Display Module
160x96 LCD Display Module 160x96 LCD Display Module 160x96 LCD Display Module 160x96 LCD Display Module
Product name : 160x96 LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description


Our
ENH-DG16096-02 has a viewing area of 56.6 x 38.6 mm and is the smallest of our standard 160 x 96 LCD modules. This LCD is suitable for a wide variety of applications and is available with several different backlight colors. The COG IC is the Sitronix ST75160 (or other compatible IC). This LCD has a FPC interface.

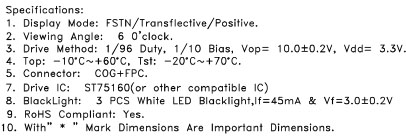

Information

160*96 LCD Display Module

Resolution

160x96

Outline Size

56.6 x 38.6 mm

Viewing Area

53.6 x 28.6 mm

Active Area

48.78 x 25.90 mm

Connector

COG+FPC

Driver IC

ST75160

Backlight

3 white LED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/96 duty, 1/10 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

MOQ

1 PCS

RoHS Compliant

Yes

Please contact us for datasheet and programming.

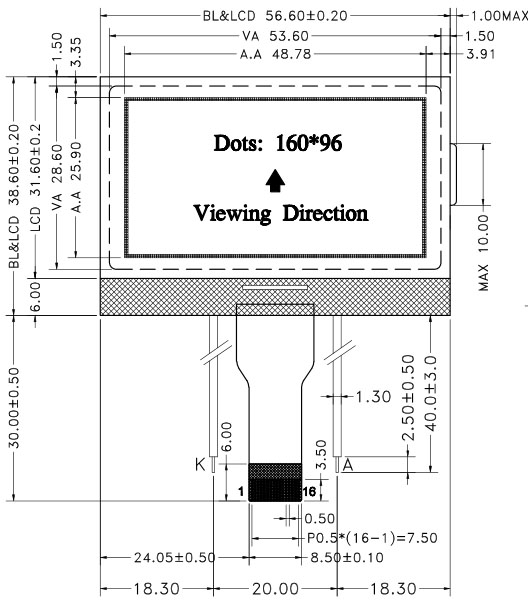

LCD Drawing
