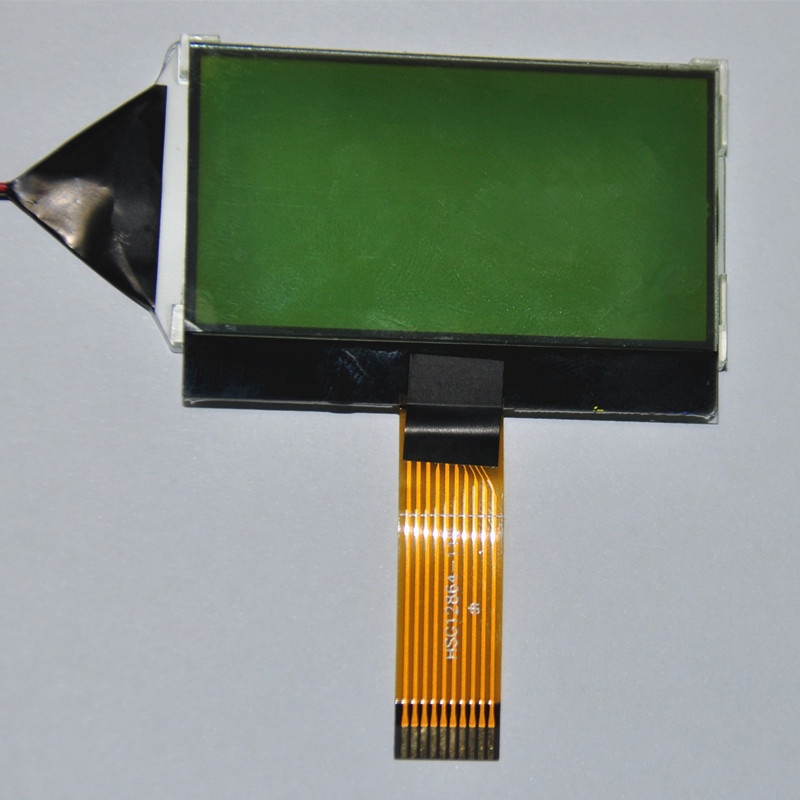

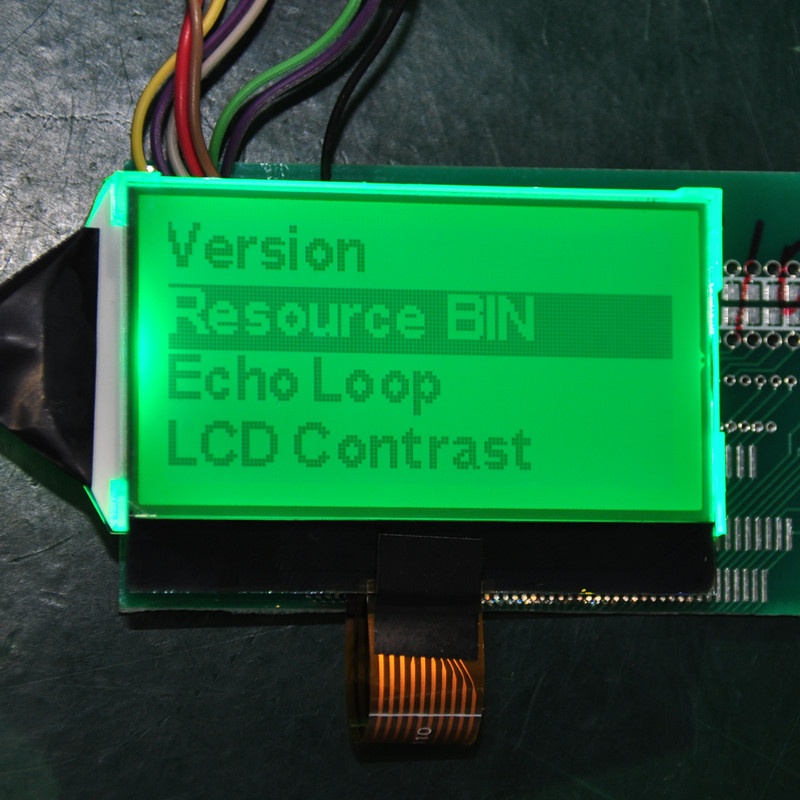

2.15 inch 128x64 Graphic COG LCD Module
2.15 inch 128x64 Graphic COG LCD Module 2.15 inch 128x64 Graphic COG LCD Module 2.15 inch 128x64 Graphic COG LCD Module
Product name : 2.15 inch 128x64 Graphic COG LCD Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



ENH-DG128064-68 is small 2.15" 128x64 Graphic COG LCD Module, ST7567 (or other compatible IC) controller, STN yellow-green LCD, green LED backlight.

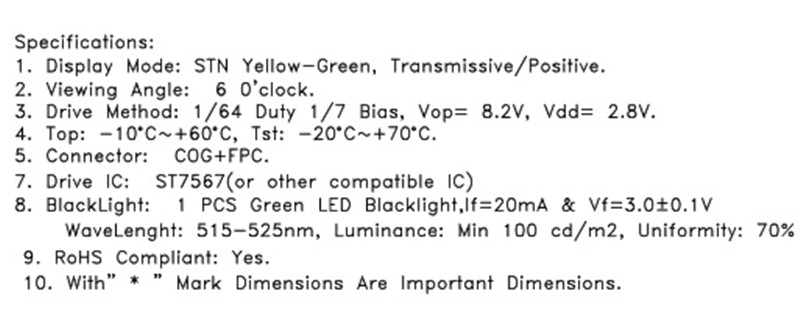

Specification

2.15 128x64 Graphic COG LCD Module

Resolution

128*64

Outline Size

65*38.6 mm

Viewing Area

53.60*28.6 mm

Active Area

48.61*24.93 mm

Connector

COG+FPC

Driver IC

ST7567(or other compatible IC)

Backlight

1 PCS Green LED

Display Mode

STN(yellow-green), Transmissive, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/7 bias

Top

-20℃ TO + 70℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

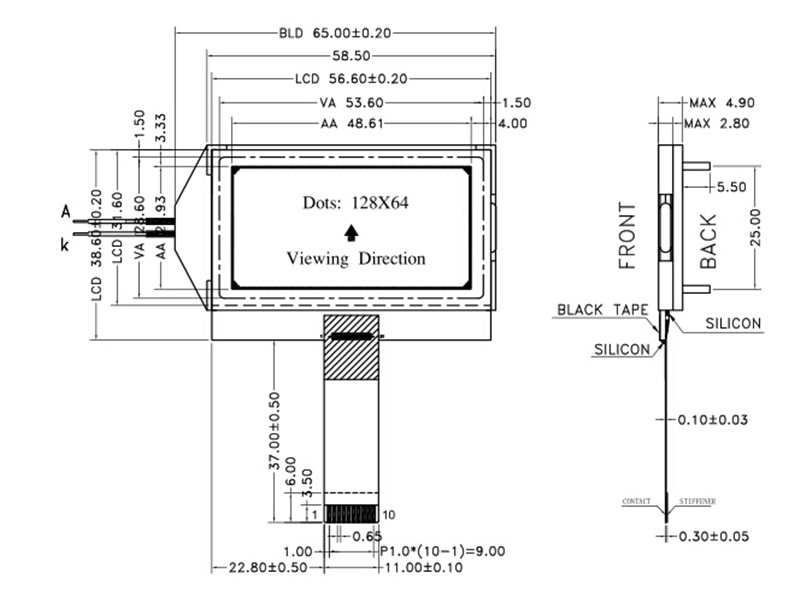

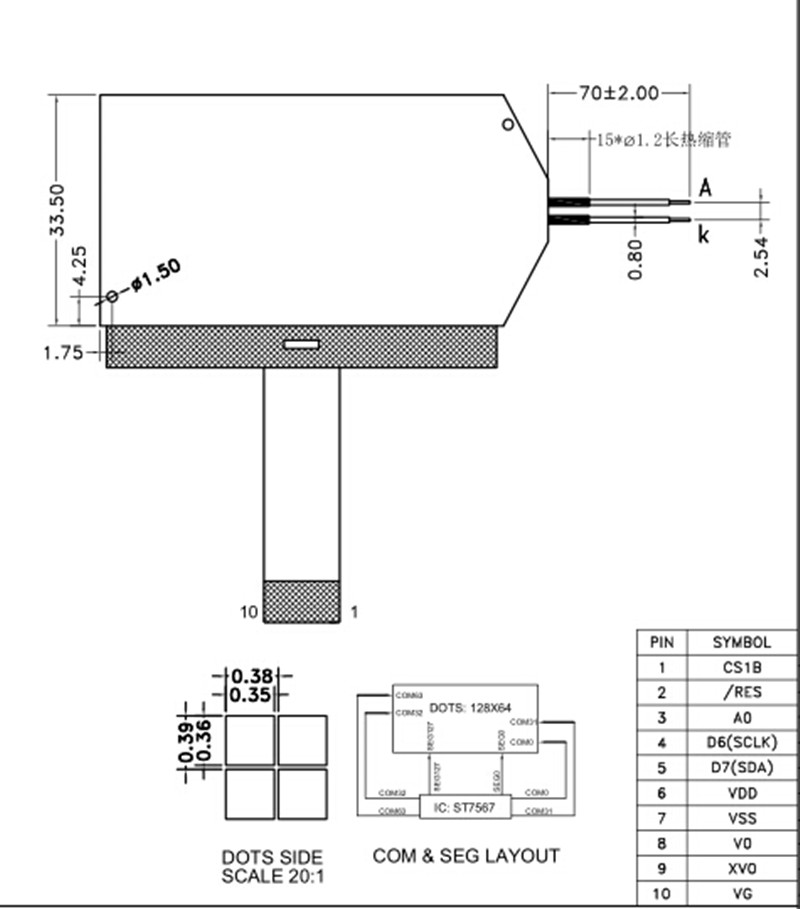

LCD Drawing
