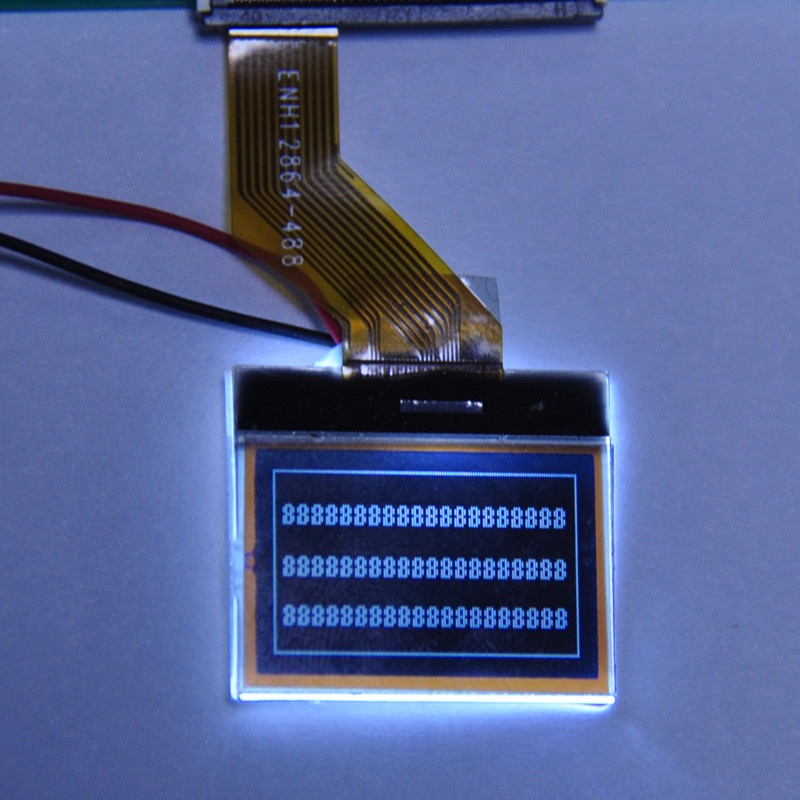

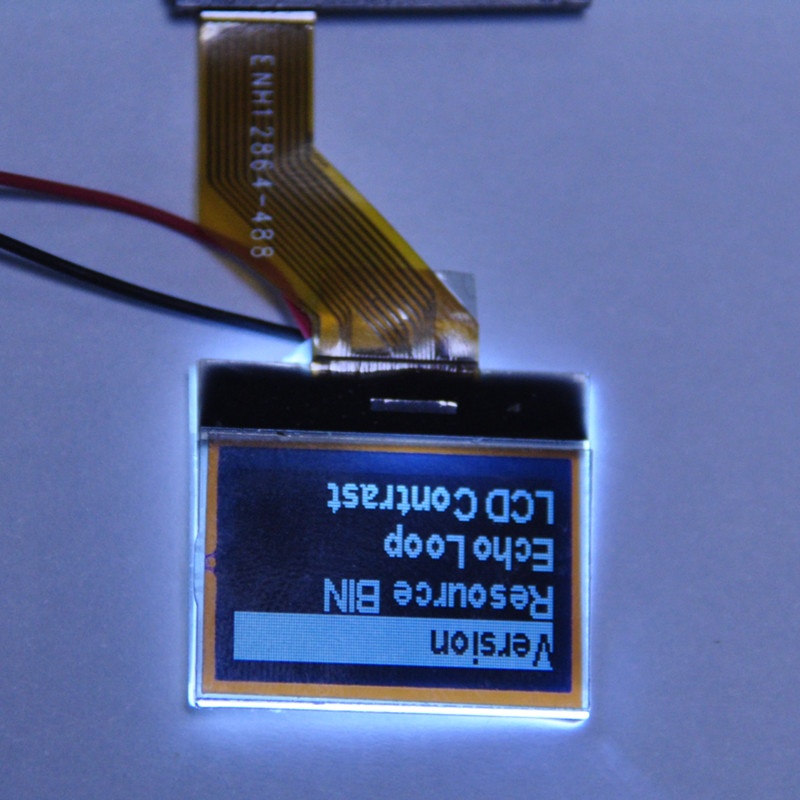

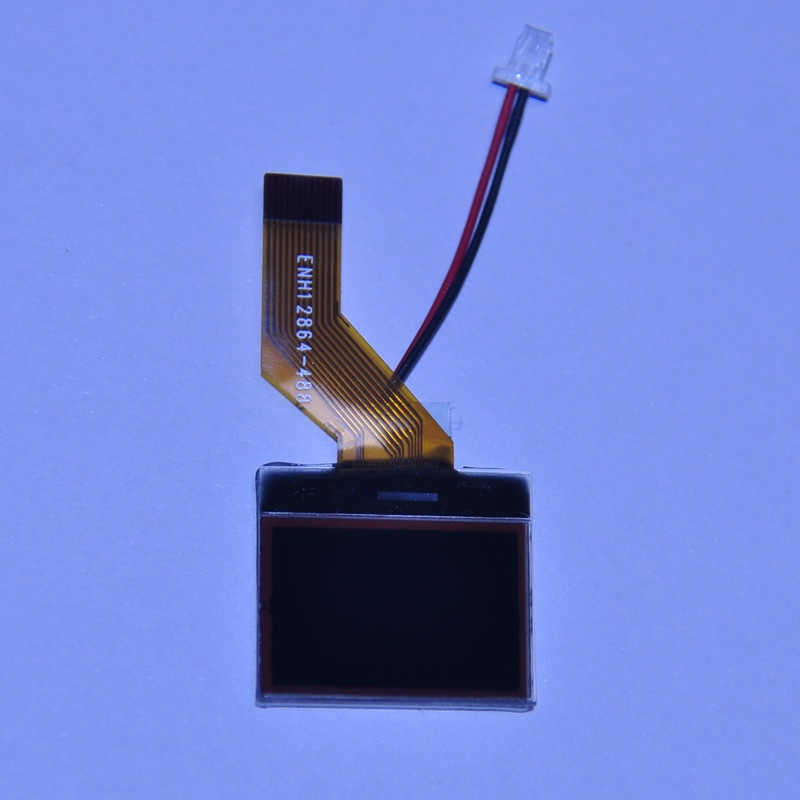

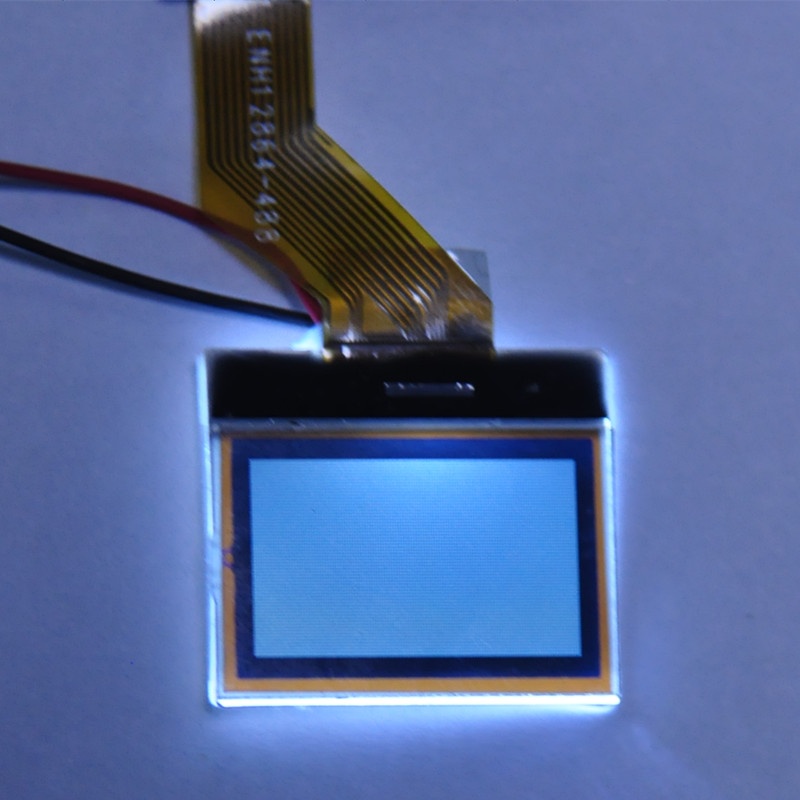

Monochrome LCD Module 12864
Monochrome LCD Module 12864 Monochrome LCD Module 12864 Monochrome LCD Module 12864 Monochrome LCD Module 12864
Product name : Monochrome LCD Module 12864
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



The FSTN display is featured with 6 oclock viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples as reference.



Industrial: Automotive application, Digital meter, UPS.

Medical: medical device & medical equipment.

Home appliance: audio, coffee machine, microwave oven.

Automobile: dashboard, car audio.



Specification

Monochrome LCD Module 12864

Resolution

128*64

Outline Size

22.2*19.5 mm

Viewing Area

19.8*12.9 mm

Active Area

17.9*10.86 mm

Connector

COG+FPC

Driver IC

UC1705x

Backlight

1PCS White LED

Display Mode

FSTN, Transmissive, Negative

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

0℃ TO + 50℃

Tst

-10℃ To + 60℃

RoHS Compliant

Yes

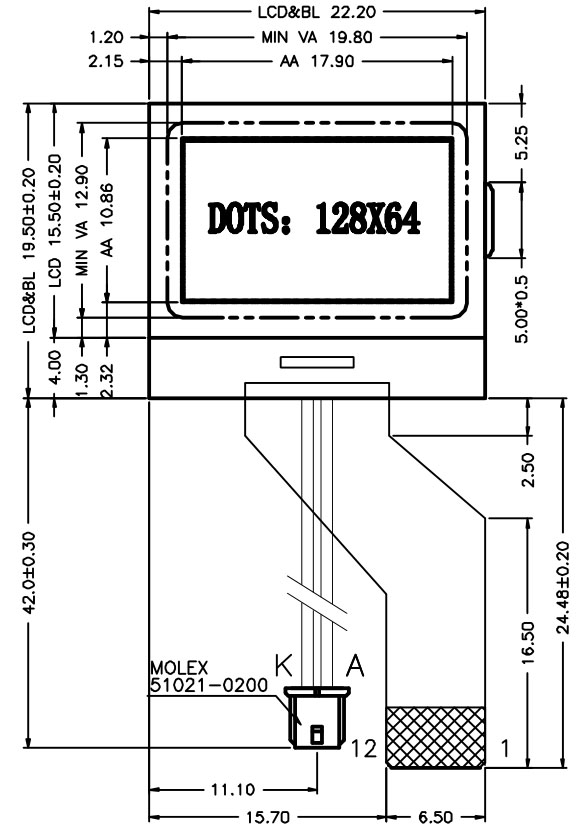

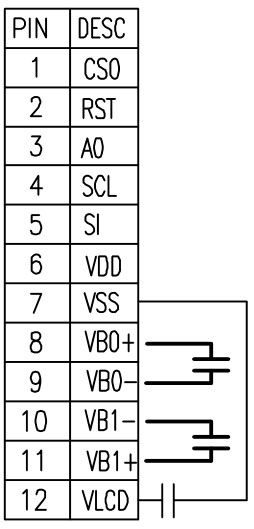

LCD Drawing
