Products > COG > > 128x64 LCD Display
128x64 LCD Display
128x64 LCD Display 128x64 LCD Display 128x64 LCD Display 128x64 LCD Display
Product name : 128x64 LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 ENH-DG128064-04

Description

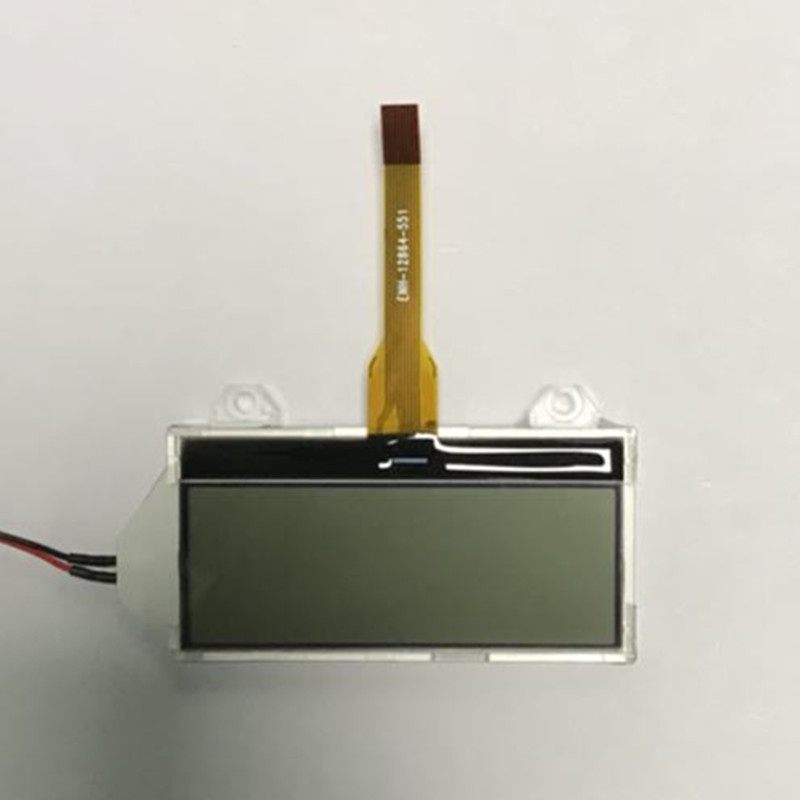

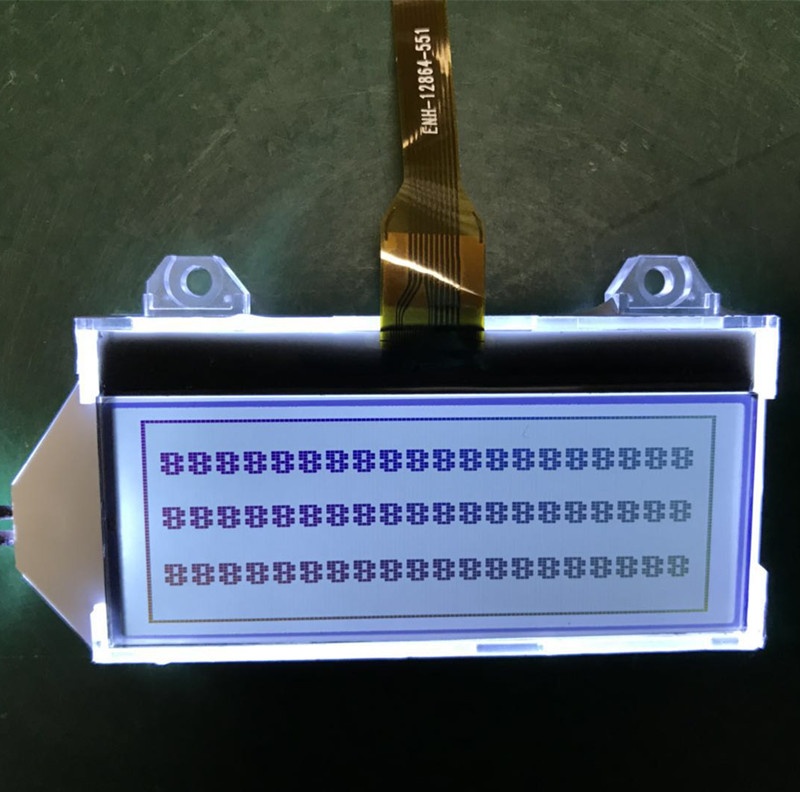

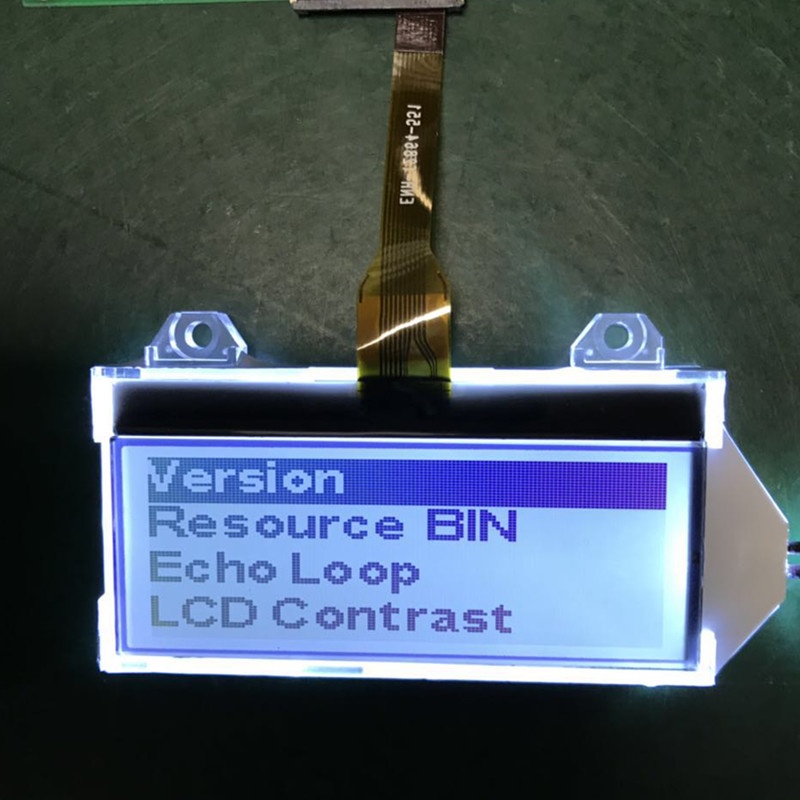

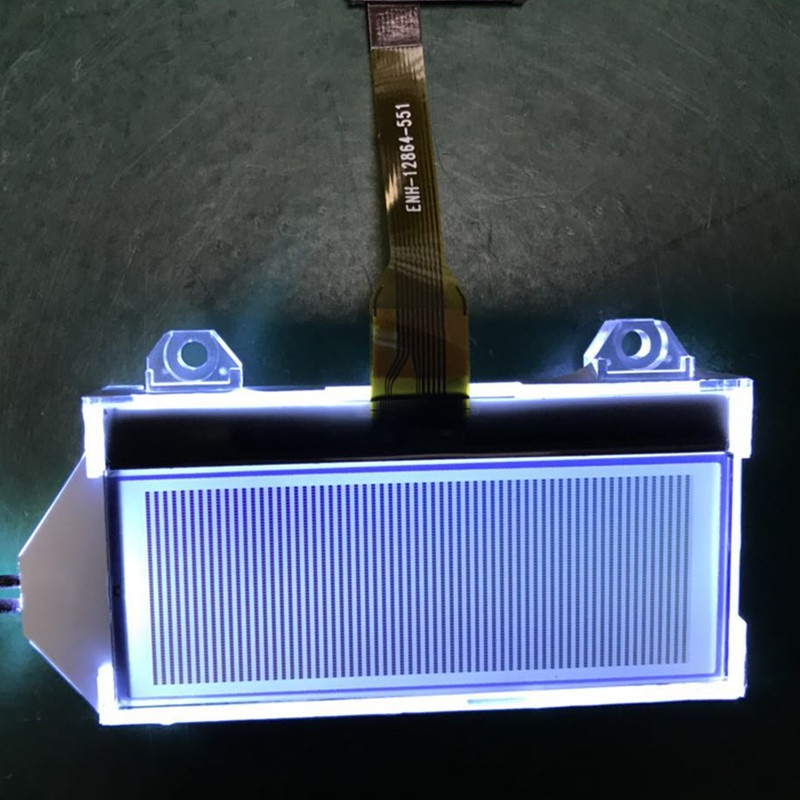

ENH-DG128064-04 is a monochrome graphic 128x64 LCD dot matrix display which is having the module dimension of 73.8x39 mm and AA size of 55.02x19.80 mm. This 128x64 LCD display is built in withST7567 IC. This ENH-DG128064-04 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

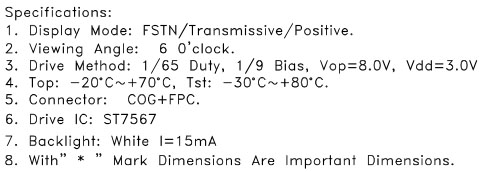

Details

128x64 LCD Display

Resolution

128*64

Outline Size

73.8*39 mm

Viewing Area

60*21.7 mm

Active Area

55.02*19.80 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

White LED

Display Mode

FSTN, Transmissive, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

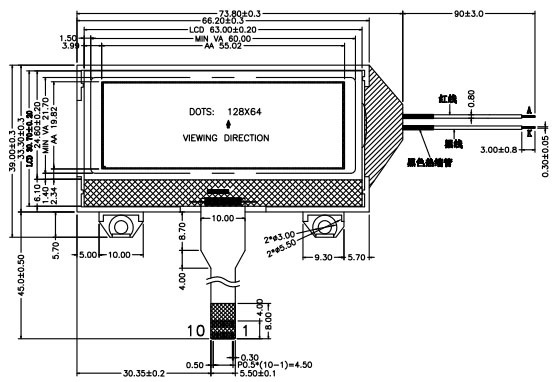

LCD Drawing
