Products > COG > > 128x64 Monochrome Small LCD Displays

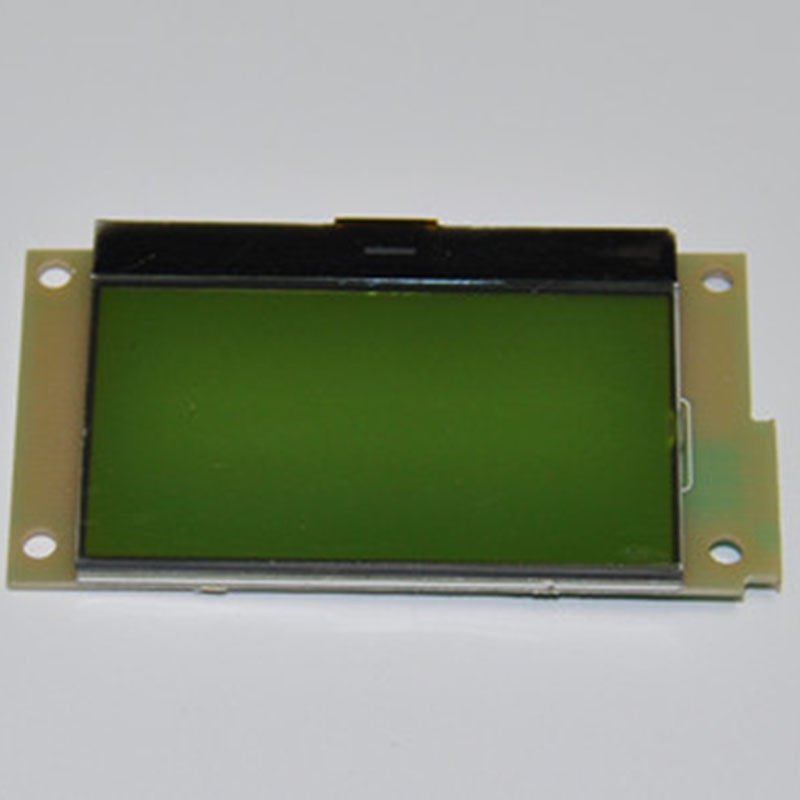

128x64 Monochrome Small LCD Displays
128x64 Monochrome Small LCD Displays 128x64 Monochrome Small LCD Displays 128x64 Monochrome Small LCD Displays
Product name : 128x64 Monochrome Small LCD Displays
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description

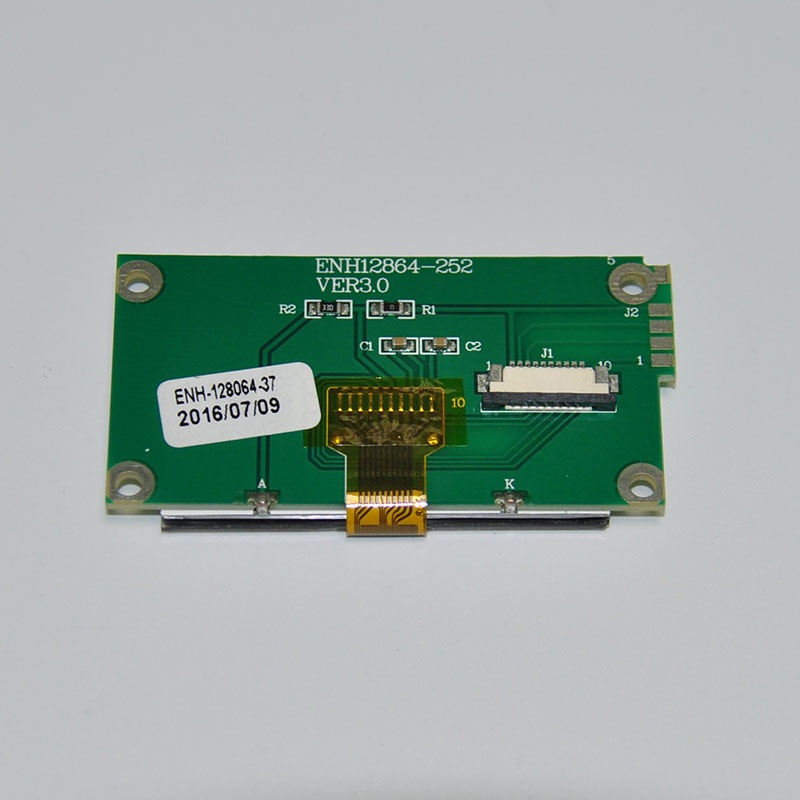

ENH-DG128064-37 version LCD module is a diagonal size 1.15 inch COG LCD display with PCB board on it. This ENH-DG128064-37 version LCD display is made of 128x64 pixels. ENH-DG128064-37 module is built in with ST7567 IC.

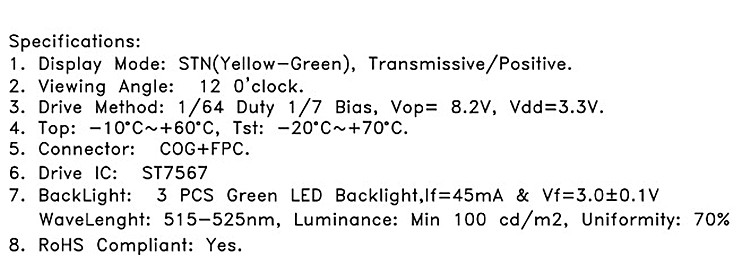

Specification

128x64 Monochrome Small LCD Displays

Resolution

128*64

Outline Size

72.3*38.6 mm

Viewing Area

53.6*28.6 mm

Active Area

48.61*24.93 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

3PCS Green LEDS

Display Mode

STN(Y-G), Transmissive, Positive

Viewing Angle

12:00

Drive Method

1/64 duty, 1/7 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

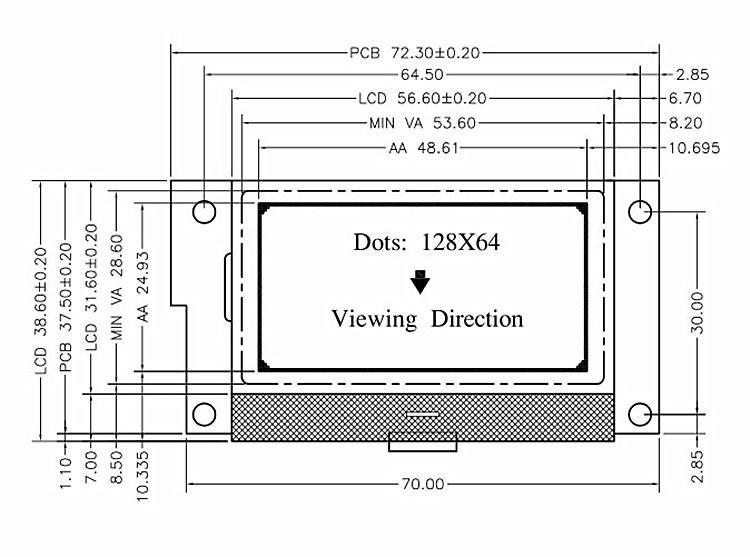

LCD Drawing
