Products > COG > > Monochrome 128x64 Graphic LCD Display Module

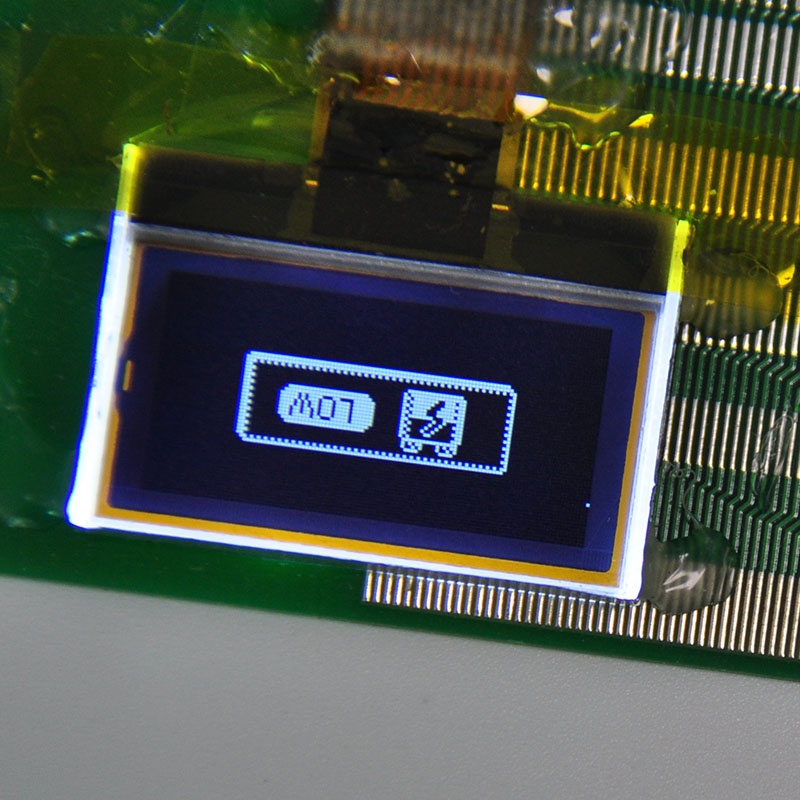

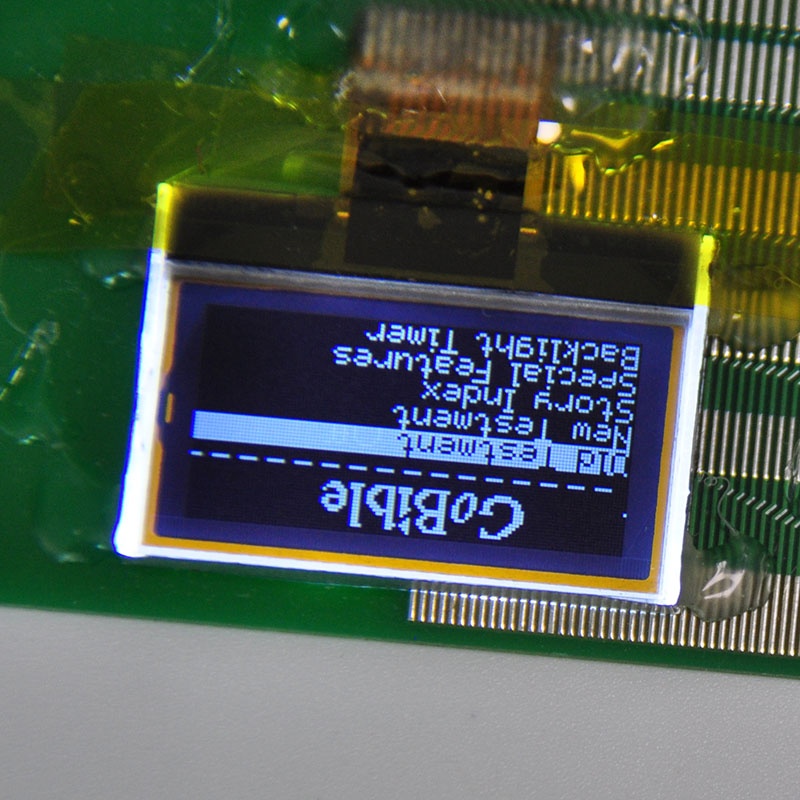

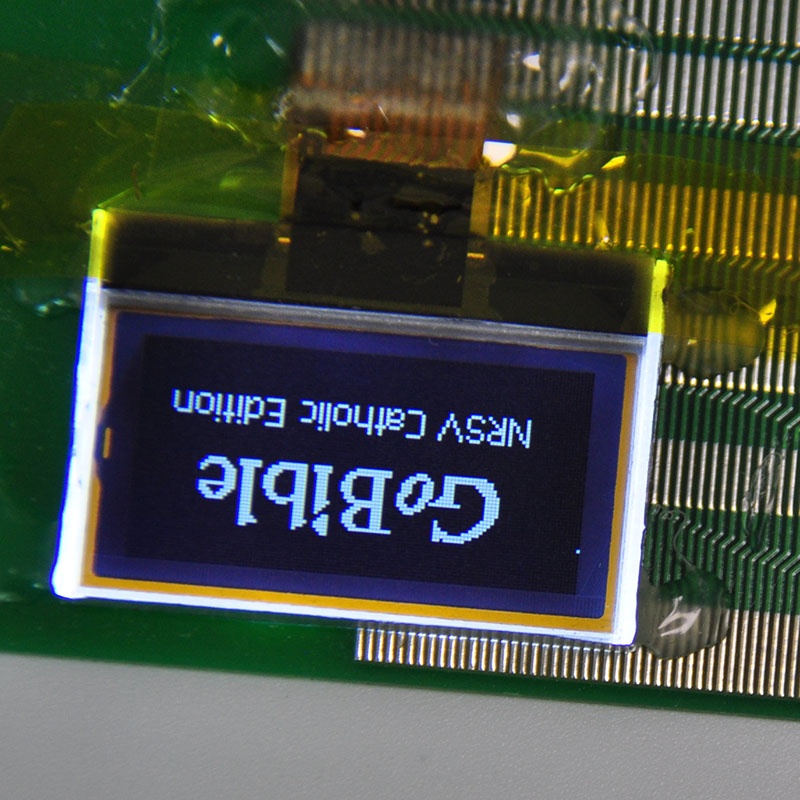

Monochrome 128x64 Graphic LCD Display Module
Monochrome 128x64 Graphic LCD Display Module Monochrome 128x64 Graphic LCD Display Module Monochrome 128x64 Graphic LCD Display Module
Product name : Monochrome 128x64 Graphic LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



ENH-DG128064-35 is a monochrome 128x64 graphic LCD display module which is having the outline size 28 x 19 mm and viewing area size of 23.74 x 12.064 mm. This 128x64 graphic LCD display is built in with ST7567 controller IC. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

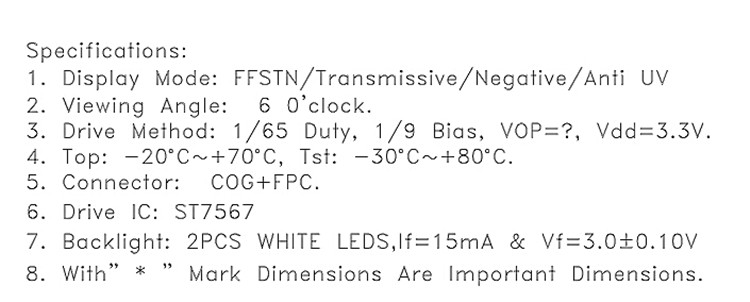

Specification

Monochrome 128x64 Graphic LCD Display Module

Resolution

128*64

Outline Size

28 x 19 mm

Viewing Area

23.74 x 12.064 mm

Active Area

21.745 x 10.865 mm

Connector

COG+FPC

Driver IC

ST7567

Backlight

2WLED

Display Mode

FFSTN, Transmissive, Negative

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

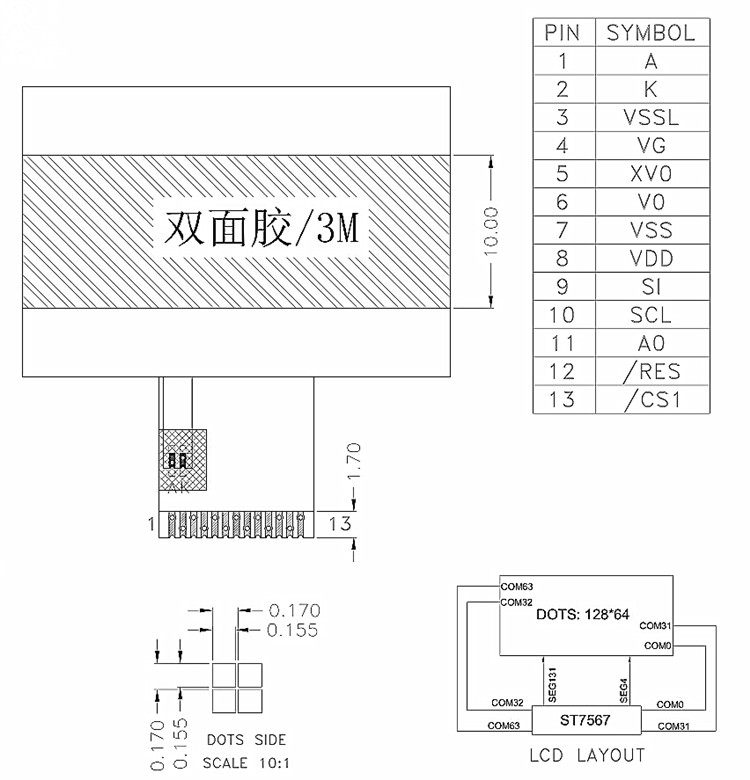

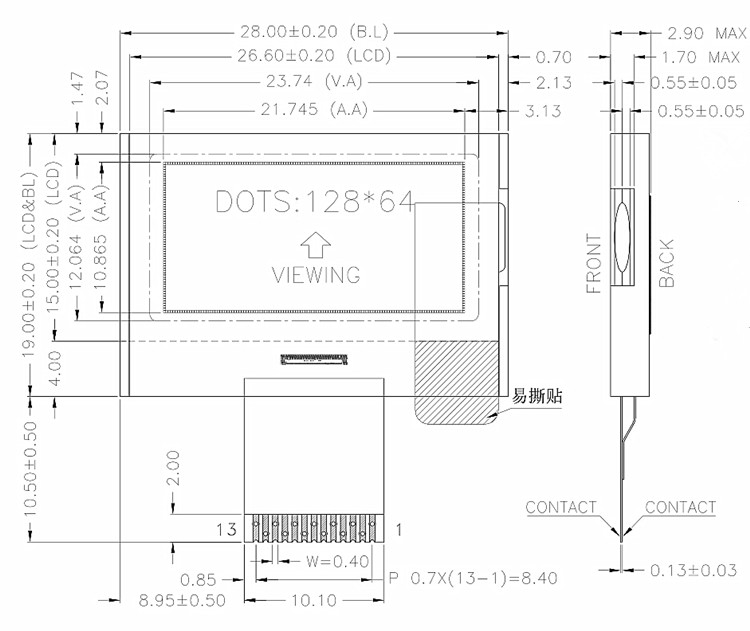

LCD Drawing
