Products > COG > > 16x2 COG Graphic LCD Display

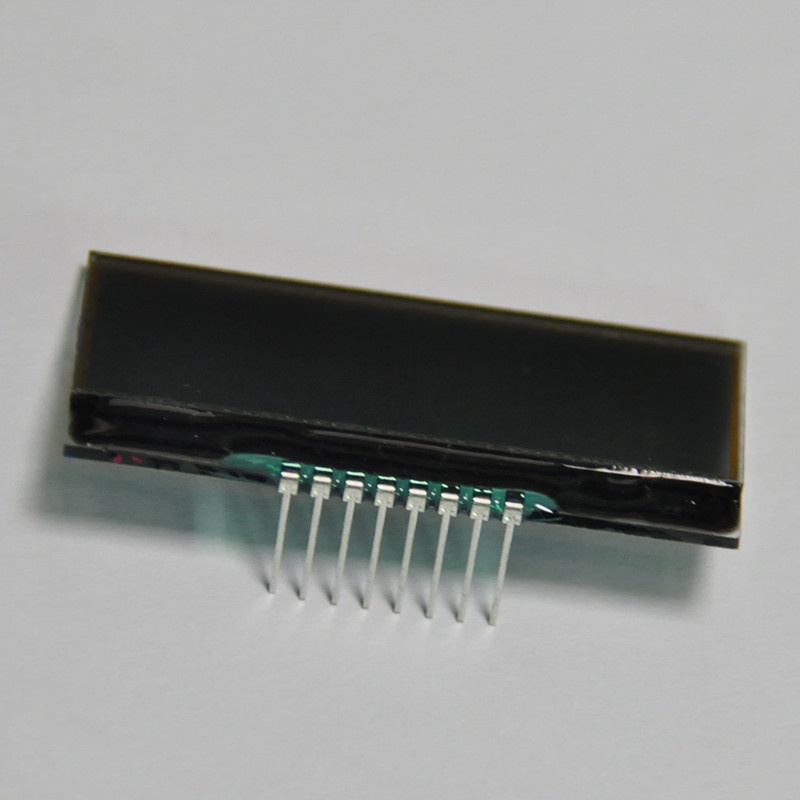

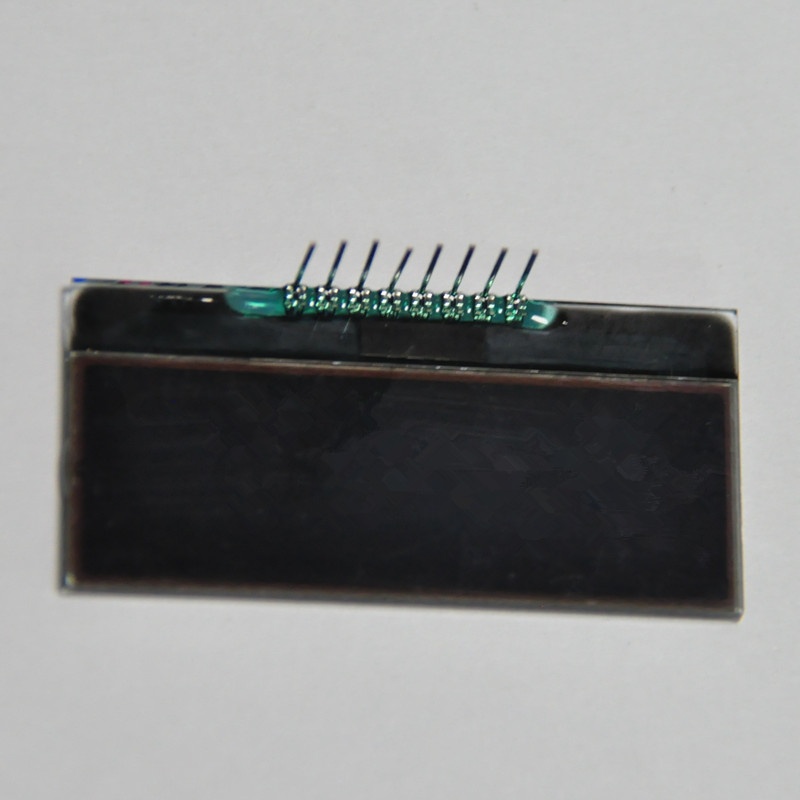

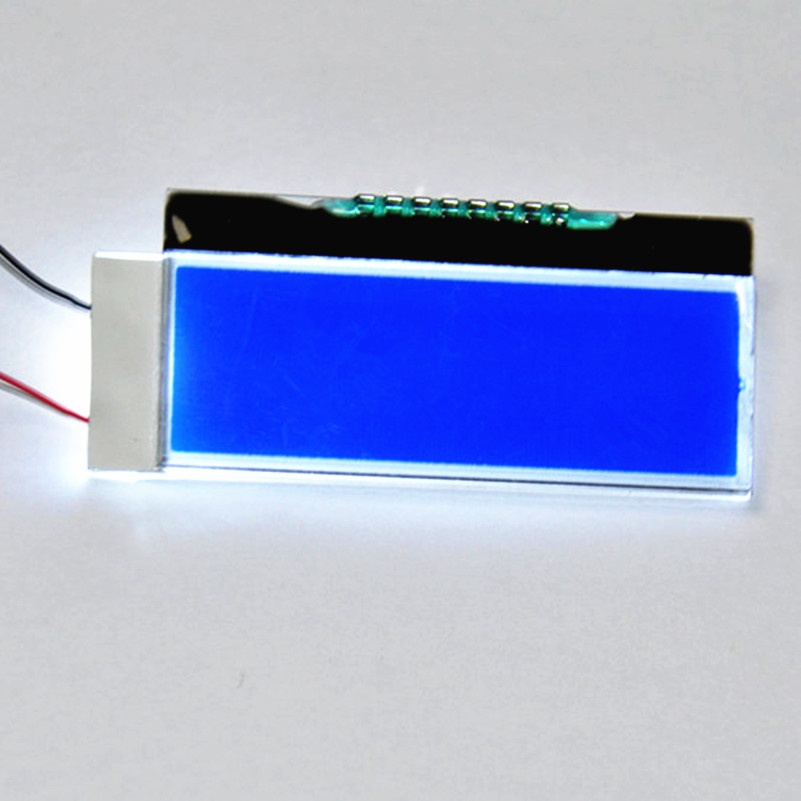

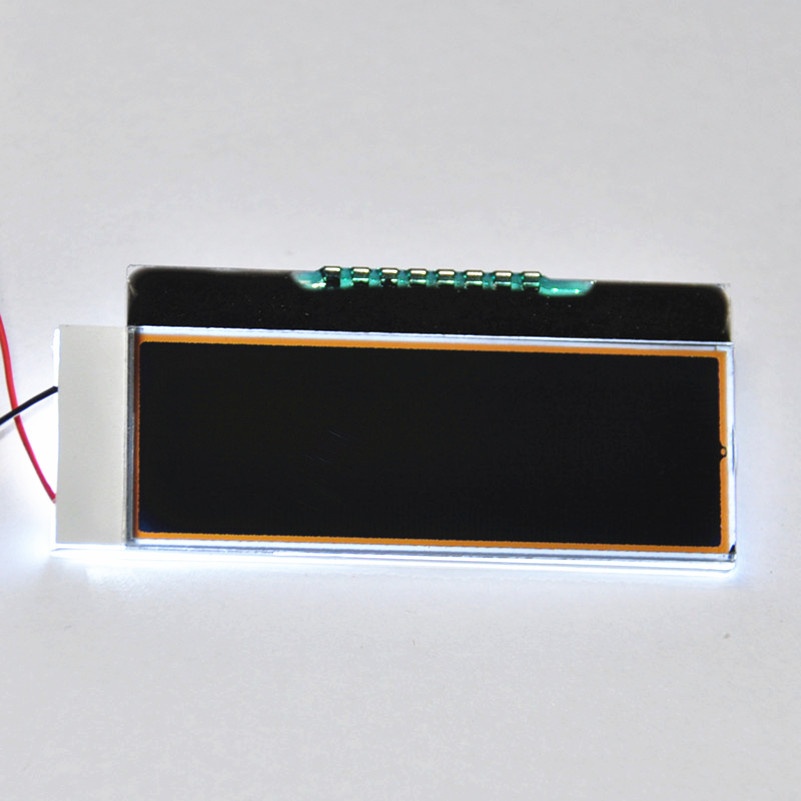

16x2 COG Graphic LCD Display
16x2 COG Graphic LCD Display 16x2 COG Graphic LCD Display 16x2 COG Graphic LCD Display 16x2 COG Graphic LCD Display
Product name : 16x2 COG Graphic LCD Display
←[Previous Product]
Online Inquiry         Email Us

  Details:
Description



Our ENH-DB1602-44 is a COG LCD display module. This display module is ideal for applications such as audio and medical equipment. This LCD has a PIN interface.



Details of LCD

16*2 COG Graphic LCD Display

Resolution

16*2

Outline Size

54*26 mm

Viewing Area

50*16 mm

Active Area

46.7*11.18 mm

Connector

COG+PIN

Driver IC

ST7032I

Backlight

White LED

Display Mode

FSTN(Black), Transmissive, Negative

Viewing Angle

12:00

Drive Method

1/16 duty, 1/9 bias

Top

0℃ TO + 50℃

Tst

-10℃ TO + 60℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

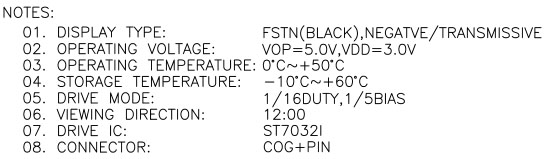

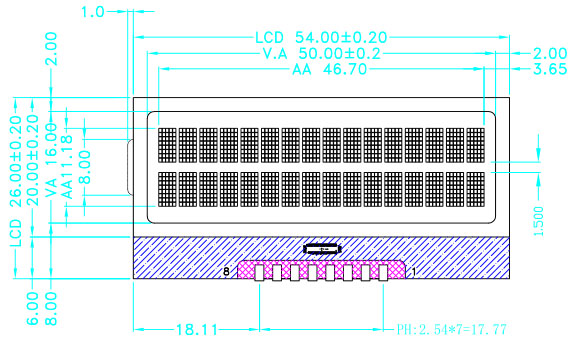

LCD Drawing
