Products > COG > > 132x32 1.17 inch Graphic Monochrome LCD Display

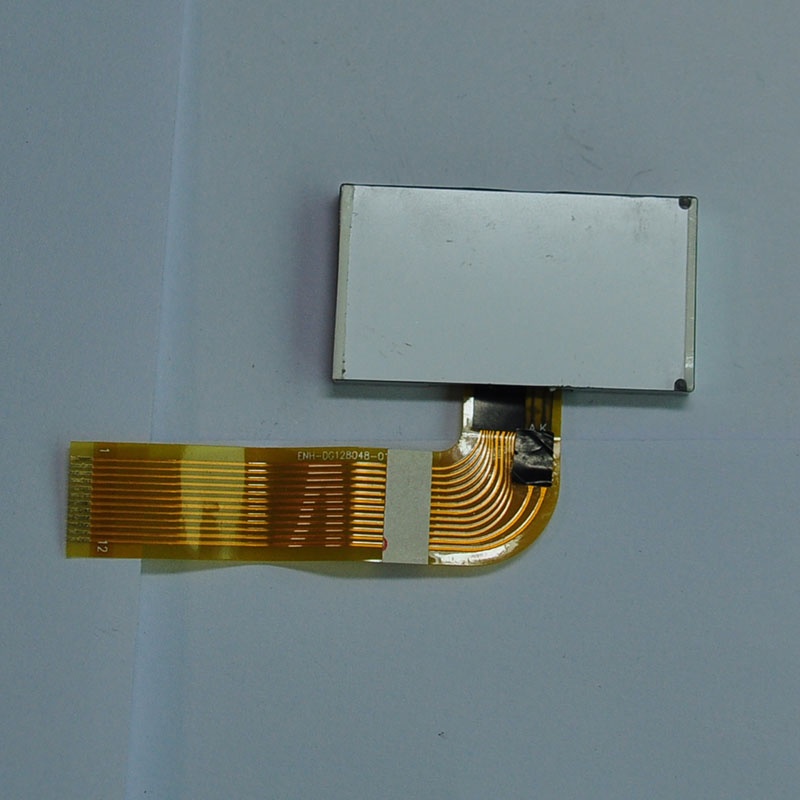

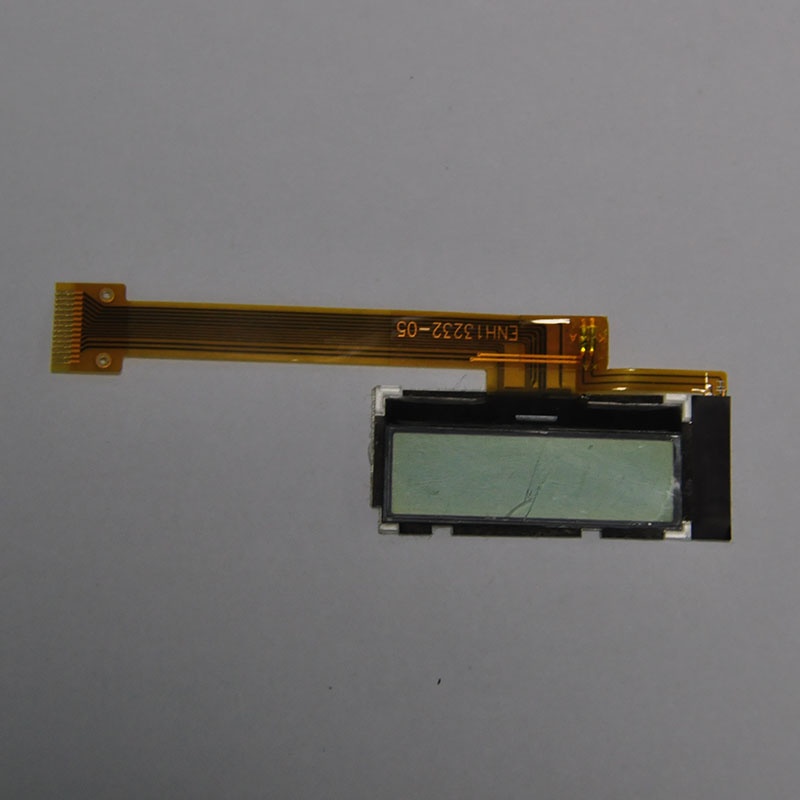

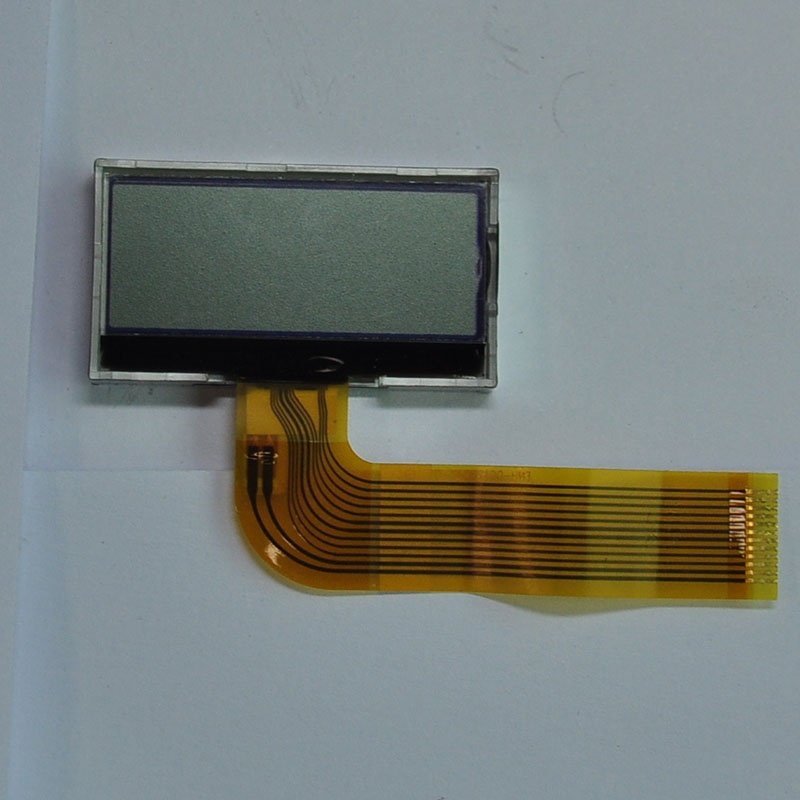

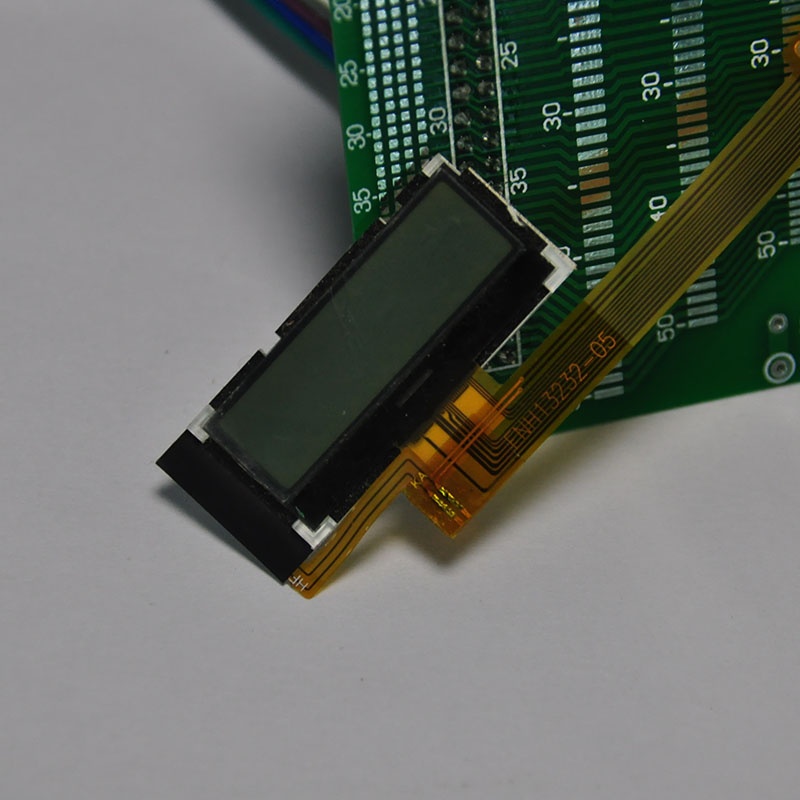

132x32 1.17 inch Graphic Monochrome LCD Display
132x32 1.17 inch Graphic Monochrome LCD Display 132x32 1.17 inch Graphic Monochrome LCD Display 132x32 1.17 inch Graphic Monochrome LCD Display 132x32 1.17 inch Graphic Monochrome LCD Display
Product name : 132x32 1.17 inch Graphic Monochrome LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



ENH-DG132032-07 is a 1.17" 132x32 resolution monochrome graphic COG LCD display module. This LCD offers an ST7567 controller, white LED backlight.

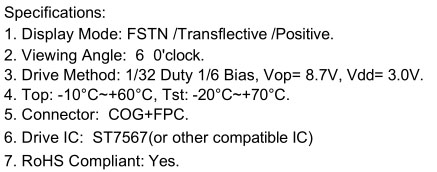

Specification

132x32 1.17 inch Graphic Monochrome LCD Display

Resolution

132*32

Outline Size

41.2*17 mm

Viewing Area

31.9*9.5 mm

Active Area

29.02*7.02 mm

Connector

COG+FPC

Driver IC

ST7567(or other compatible IC)

Backlight

No

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/32 duty, 1/6 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

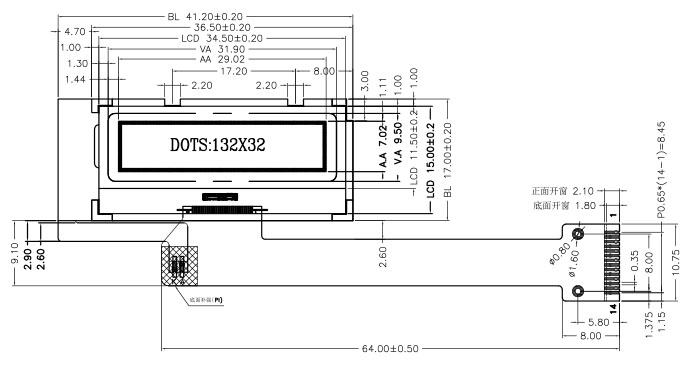

LCD Drawing
