Products > COG > > 12864 COG LCD Display

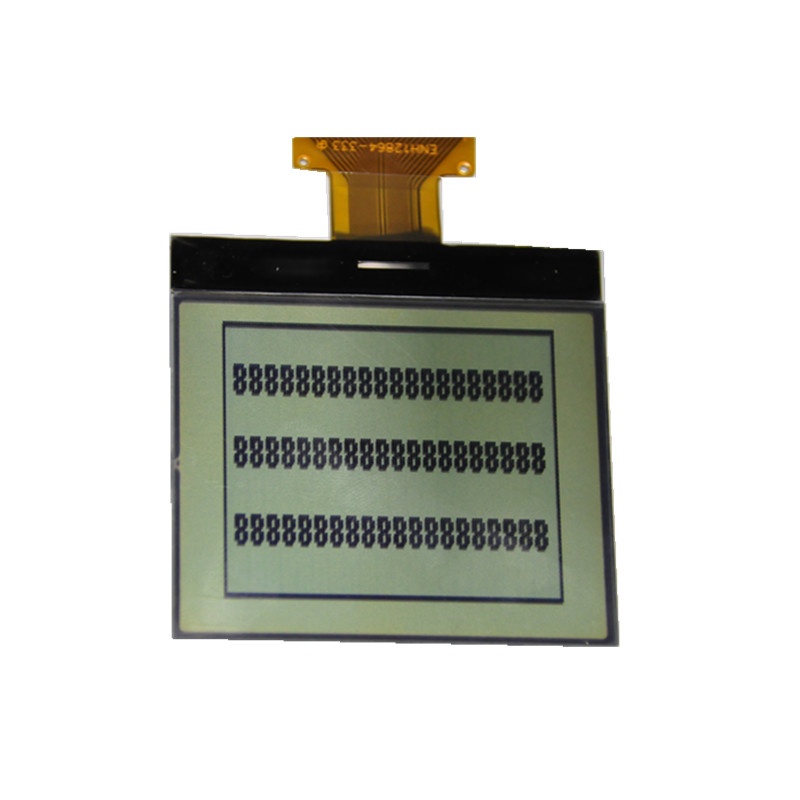

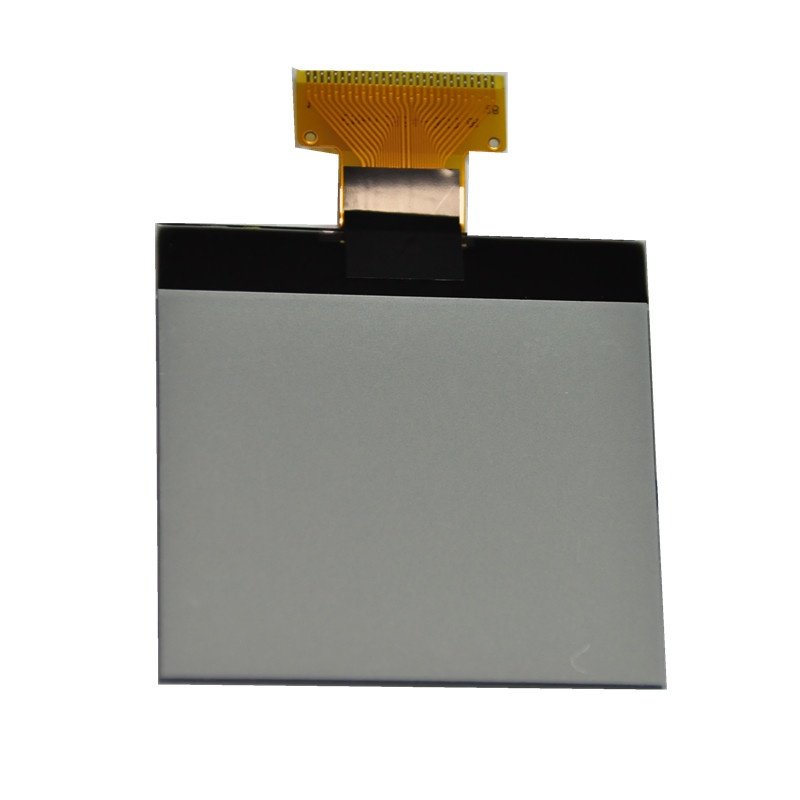

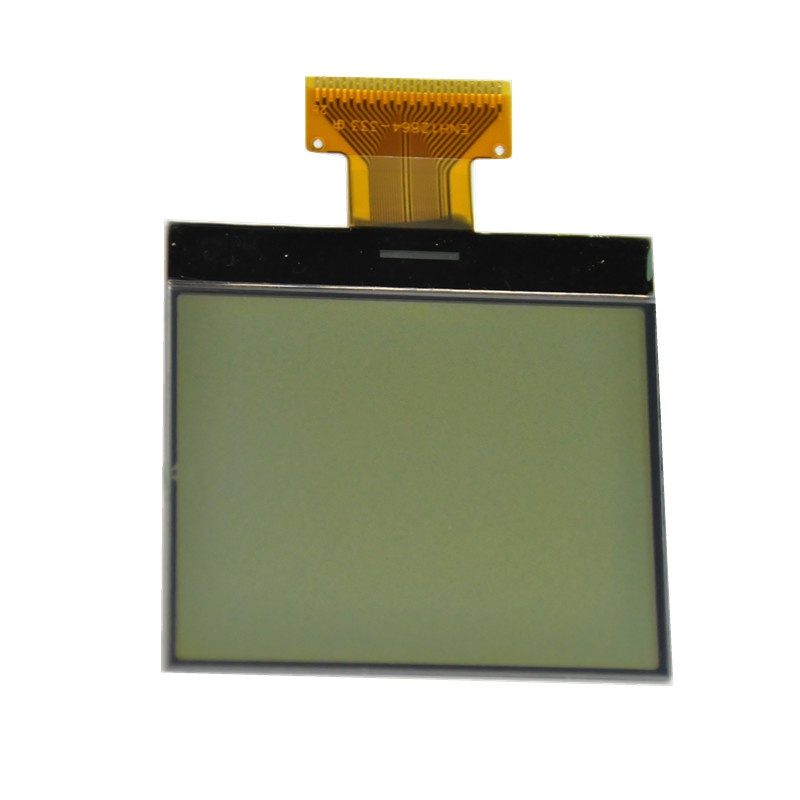

12864 COG LCD Display
12864 COG LCD Display 12864 COG LCD Display 12864 COG LCD Display
Product name : 12864 COG LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



ENH-DG128064-54 is a monochrome 128x64 graphic LCD display module; diagonal size 2.25 inch. This 128x64 graphic LCD display is built in with ST7565P controller IC. ENH-DG128064-54 is available for FSTN Negative and Positive LCD mode options; it’s optional of without backlight or with LED backlight options.

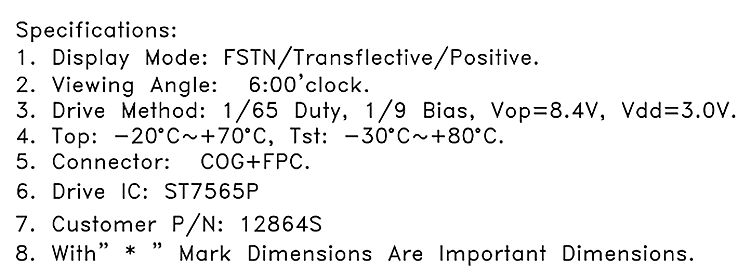

Specification

12864 COG LCD Display

Resolution

128*64

Outline Size

57*55 mm

Viewing Area

54*44 mm

Active Area

43.5*37.1 mm

Connector

COG+FPC

Driver IC

ST7565P

Backlight

WLED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

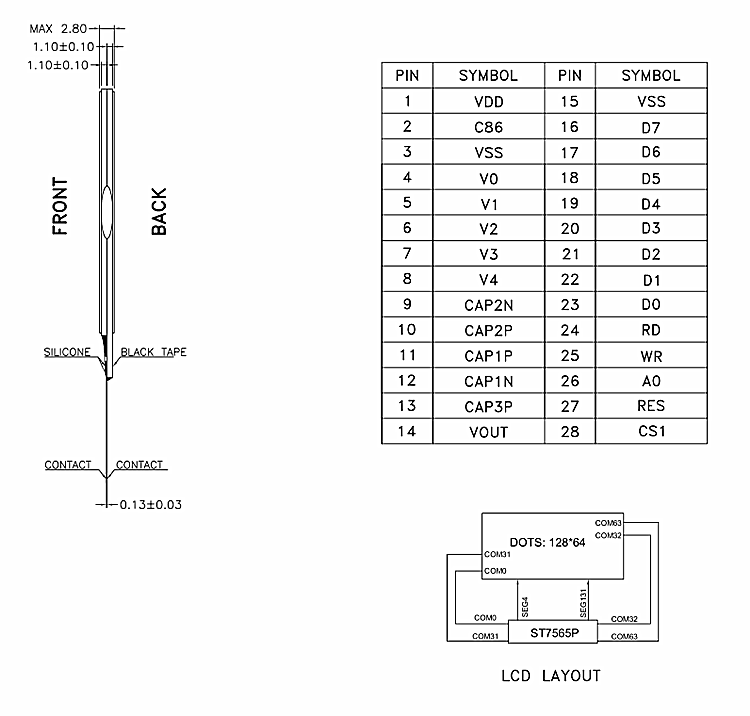

LCD Drawing
