Products > OLED Module > > 64x128 OLED Display, 0.96 Inch OLED Display
64x128 OLED Display, 0.96 Inch OLED Display
64x128 OLED Display, 0.96 Inch OLED Display 64x128 OLED Display, 0.96 Inch OLED Display 64x128 OLED Display, 0.96 Inch OLED Display
Product name : 64x128 OLED Display, 0.96 Inch OLED Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This display is having the module dimension of 14 x 28 mm and AA size of 10.86 x 21.74 mm. Customers can upgrade your current applications from traditional STN displays to OLED displays since Enrich provides a very wide range of dot pixel formats OLED solutions.



Specification

64x128 OLED Display, 0.96 Inch OLED Display

Resolution

64*128

Module Size

14 (W) x 43.8 (H) x 1.227 (D) mm

Panel Size

14 (W) x 28 (H) mm

Active Area

10.86 (W) x 21.74 (H) mm

Dot Size

0.15 (W) x 0.15 (H) mm 2

Dot Pitch

0.17 (W) x 0.17 (H) mm 2

Driver IC

SH1107

Color

white

Viewing Angle

160°

Interface

4-wire serial peripheral interface, I 2 C Interface

High contrast

2000:1

Operating Temperature

-40 to 70°C

RoHS Compliant

Yes

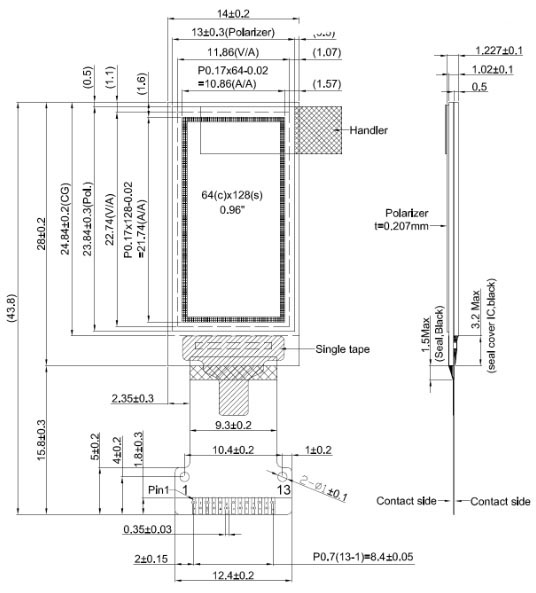

OLED Drawing

OLED Application

Enrich Display Series are suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, etc.
