Products > OLED Module > > 0.66", 64x48 OLED, OLED SSD1306 I2C Graphic Display
0.66
0.66 0.66
Product name : 0.66", 64x48 OLED, OLED SSD1306 I2C Graphic Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

DESCRIPTION



ENH-OB0066001A is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption.



FEATURES

(1) Display Color: WHITE

(2) Dot Matrix: 64x48

(3) Drive IC: SSD1306BZ

(4) Viewing Angle: 160°

(5) Aperture rate: 81.8%

(6) Interface: 6800/8080 interface, 4 wire serial interface, I2C



MACHANICAL SPECIFICATIONS

ITEM

SPECIFICATIONSUNIT

MODULESIZE

18.46(W)x18.1(H)x1.21(D) mm

VIEWINGAREA

15.42(W)x12.06(H) mm

ACTIVEAREA

13.42(W)x10.06(H) mm

DOTSIZE

0.19(W)x0.19(H) mm

DOTPITCH

0.21(W)x0.21(H) mm

ASSY.TYPE

COG

WEIGHT

TBD


OLED

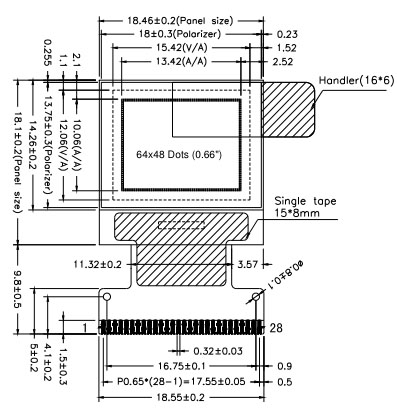

 DRAWING

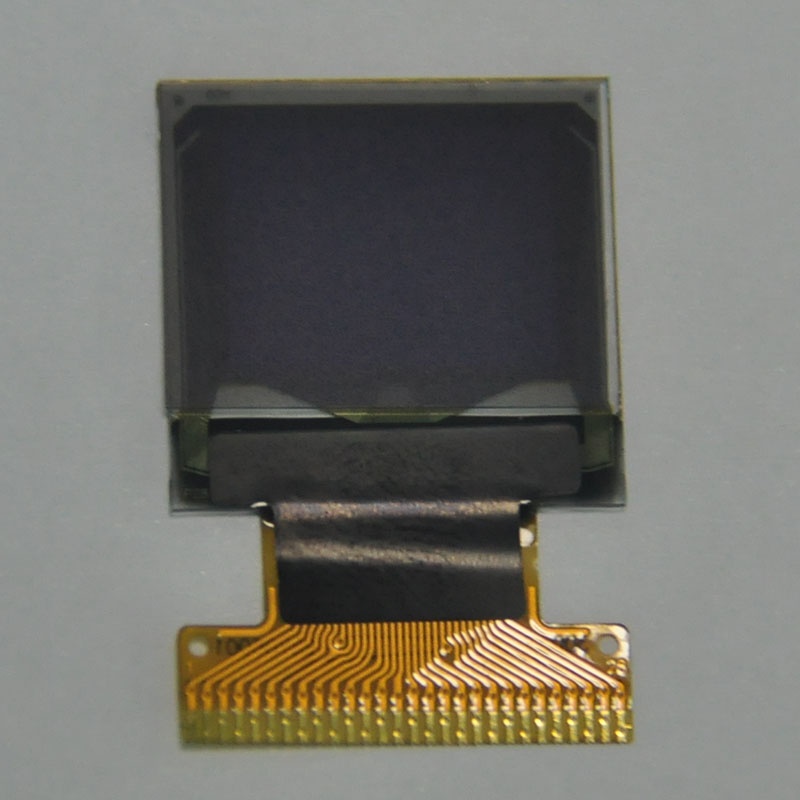

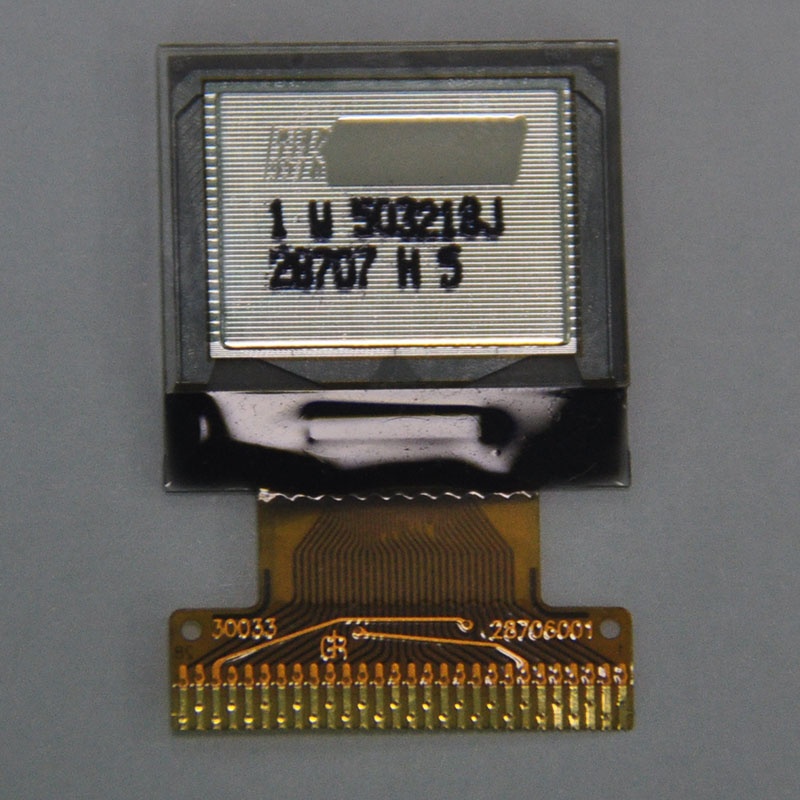

OLED IMAGES

OLED APPLICATIONS

This 0.66 inch small sized OLED display is suitable for wearable device, E-cigarette, MP3, personal care appliance, portable device, voice recorder pen, health device, etc.
