Products > OLED Module > > 0.71 Inch White on Black Small OLED Display

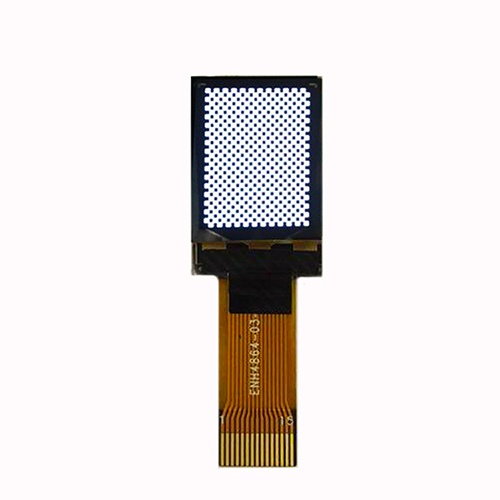

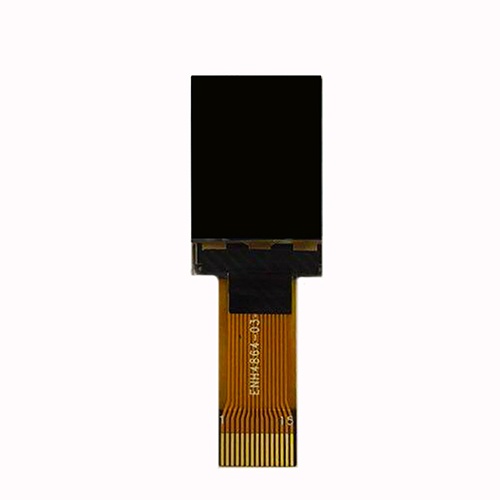

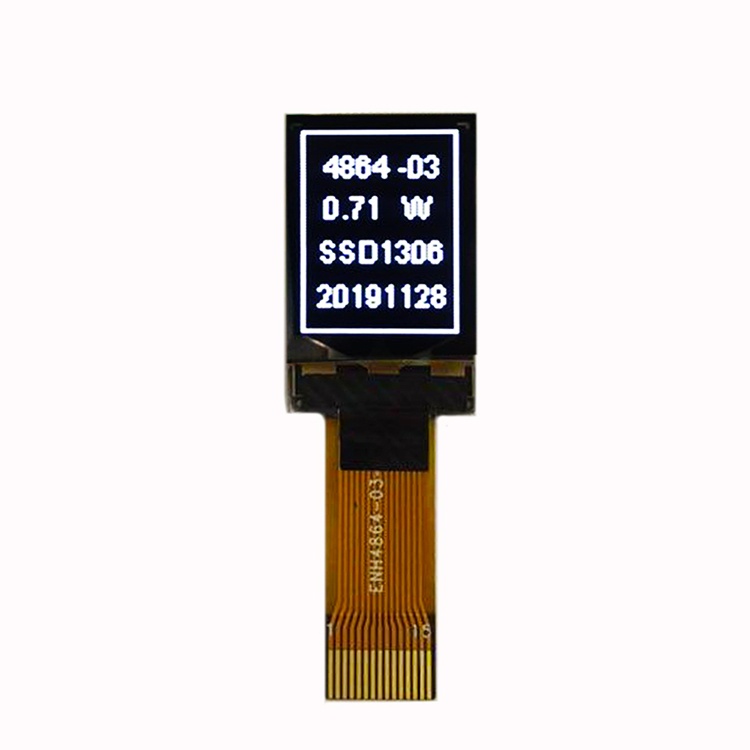

0.71 Inch White on Black Small OLED Display
0.71 Inch White on Black Small OLED Display 0.71 Inch White on Black Small OLED Display 0.71 Inch White on Black Small OLED Display 0.71 Inch White on Black Small OLED Display
Product name : 0.71 Inch White on Black Small OLED Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Power consumption for OLED display modules is lower than any other display technology, as the image requires refreshing only when content changes. These OLED display modules are ideal for applications where power is severely constrained. The high contrast ratio and anti-glare surface makes an OLED display module easy to read in bright sunlight.



Features

0.71 Inch White on Black Small OLED Display

Resolution

48*64

Outline Size

18.9*22 mm

Viewing Area

12.14*16.3 mm

Active Area

10.54*14.7 mm

Interface

SPI

Color

White

Driver IC

SSD1306BZ

Display Mode

Passive Matrix

Viewing Angle

ALL

RoHS Compliant

Yes

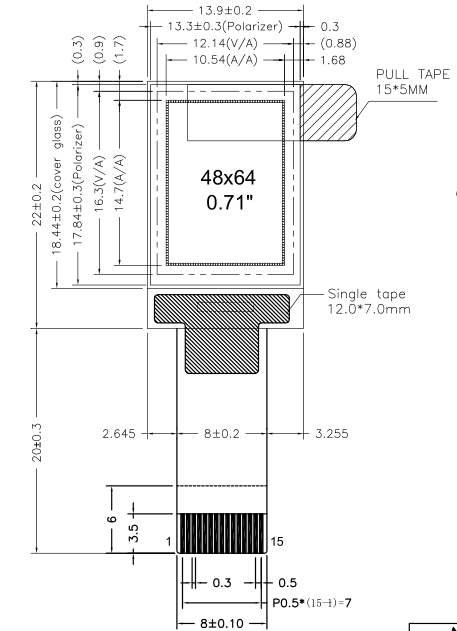

LCD Drawing

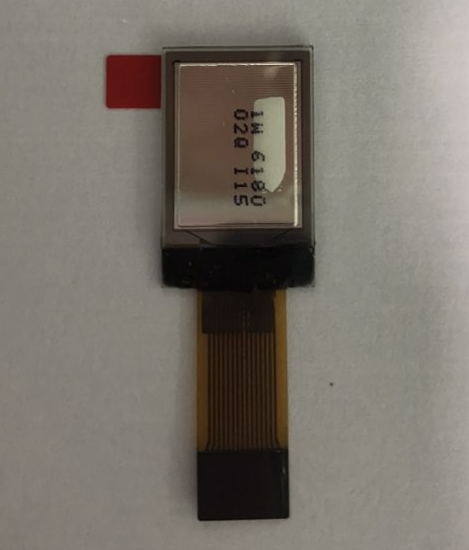

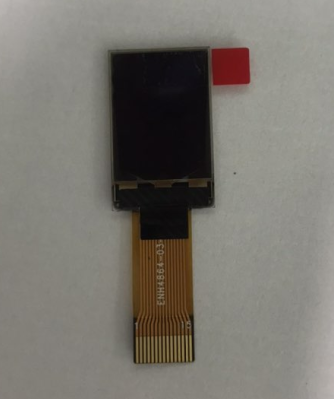

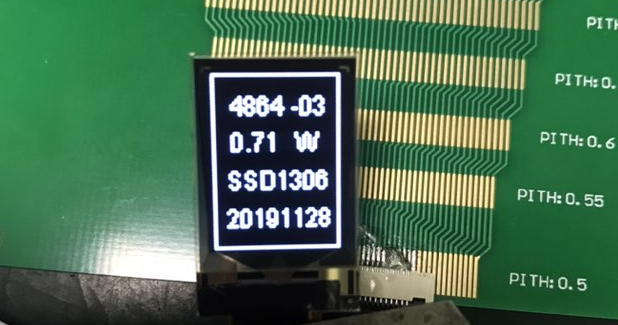

Image Details

LCD Applications

-Household Appliances

-Medical Device

-A Number of Areas of Financial POS Machine

-Smart Wearable Device

-Instrumentation

-Automobile

-Measuring Equipments

-Digital Clocks & Watches

-Financial Machines

-...



FAQ

1. How to contact us?

Send your inquiry details for us please.

2. Do you accept customized LCD display?

Yes, we can offer custom solution if standard products couldn’t meet clients’ requirements. Besides, we also will accept customized LCD display.

3. What about the delivery time?

The LCD products need 5-6 weeks to be made after receive your payment.

4.What is the MOQ?

Generally if you choose the different products, our minimum order quantity also will be different.
