Products > OLED Module > > China Supply 1.3 inch OLED Module 7PIN

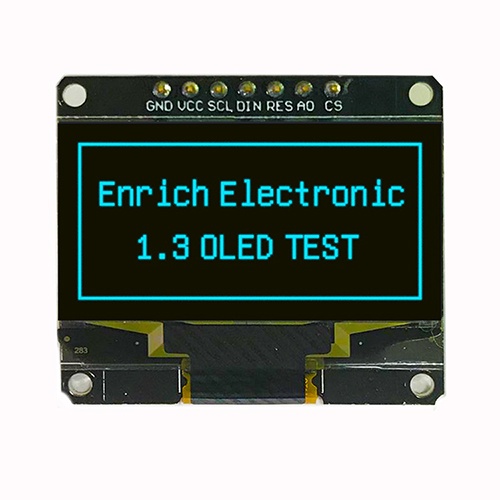

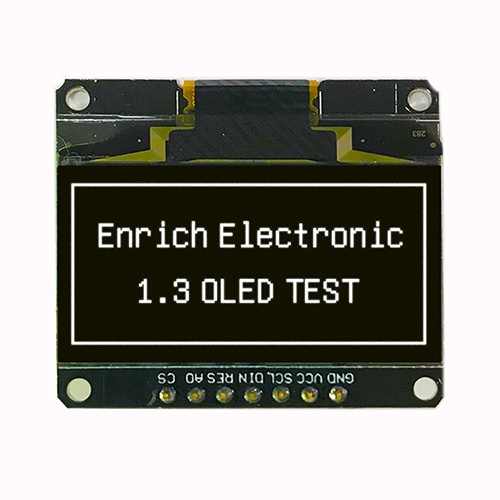

China Supply 1.3 inch OLED Module 7PIN
China Supply 1.3 inch OLED Module 7PIN China Supply 1.3 inch OLED Module 7PIN China Supply 1.3 inch OLED Module 7PIN China Supply 1.3 inch OLED Module 7PIN
Product name : China Supply 1.3 inch OLED Module 7PIN
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Are you looking for a small OLED screen display for your device or product? We carry a number of OLED screens. If you need a capacitive or a resistive touch screen we have both available.



All of our OLED screen modules are graphic displays, and come with outstanding technical support plus, demo code and complete data sheets.

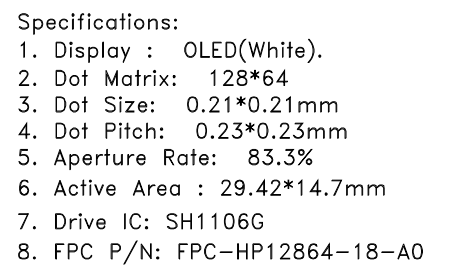

Features

China Supply 1.3 inch OLED Module 7PIN

Size

1.3 Inch

Control IC

SH1106

Resolution

128x64

Viewing Area

29.42x14.7 (mm)

Physical Dimensions

35x31 (mm)

Interface

IIC,SPI Interface

PIN Number

7 PIN

Display Color

White, Blue

Operating Temperature

-40 to + 85

Operating Voltage

3.0V

Module Weight

4g

Interface Definition

1>GND

2>VCC

3>SCL

4>DIN

5>RES

6>A0

7>CS

Test Platform

1>51

2>STM32

3>STM8

4>Arduino



LCD Application

#Auto electronics

#Meters & Instrument

#Telecommunication

#Domestic Electrical Appliance

#Smart Watch

#Office equipment

#Medical & health equipment

#3D & Shutter

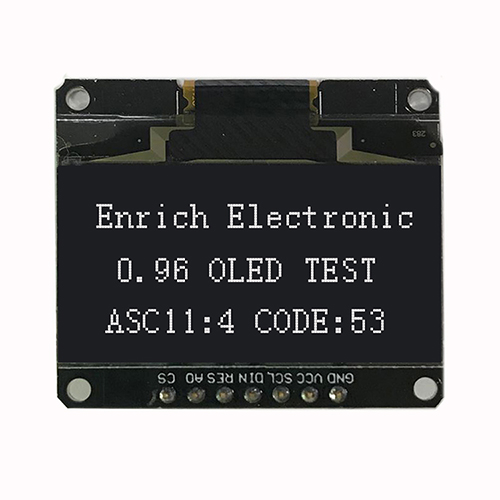

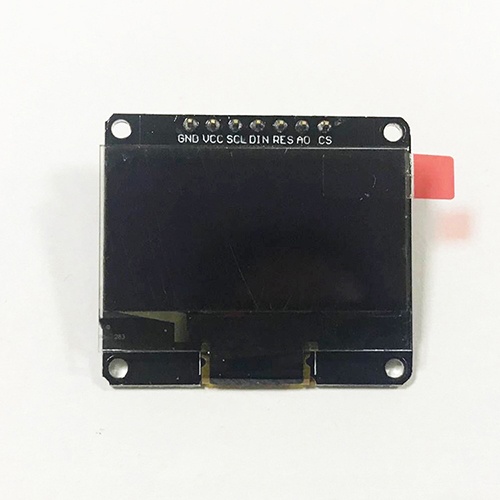

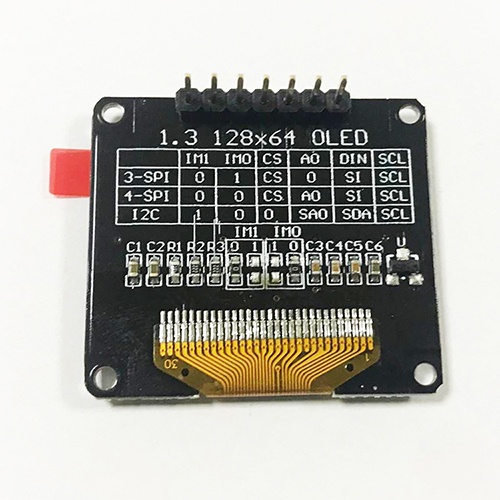

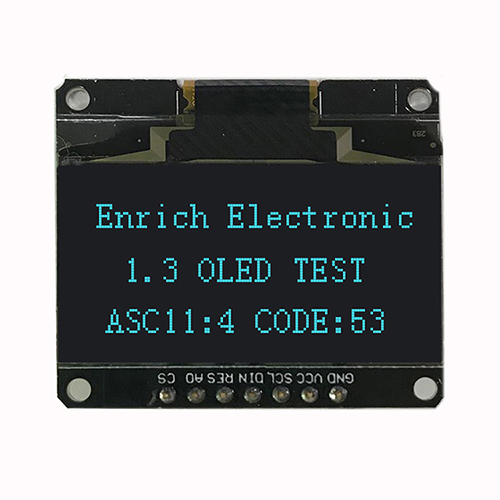

Details Images

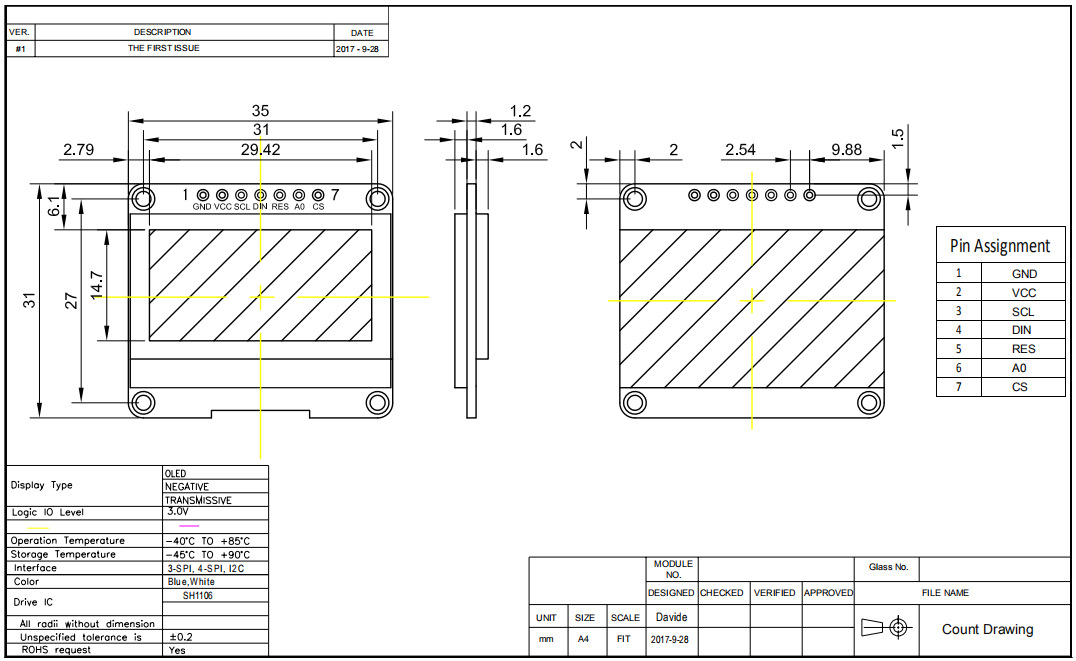

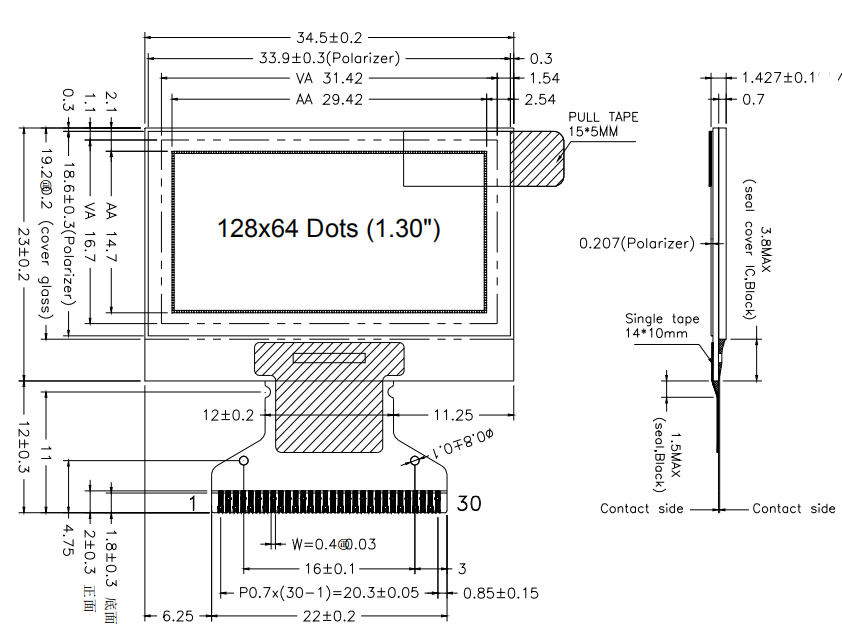

Physical Dimension

FAQ

1) Solution

If you need a solution with some special function, tell us,we can meet your requirement.

2) Technical Support

We have experienced engineers and he will provide you comprehensive technical service.

3) Data sheets

We will provide detailed data sheets of screen/module/driver IC and application circuit to you.
