Products > OLED Module > > 0.49 Inch Graphic OLED 64x32
0.49 Inch Graphic OLED 64x32
0.49 Inch Graphic OLED 64x32 0.49 Inch Graphic OLED 64x32 0.49 Inch Graphic OLED 64x32
Product name : 0.49 Inch Graphic OLED 64x32
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



ENH-OB6432TSWE is a small Graphic PMOLED display which is made of 64x32 dots, diagonal size 0.49 inch. ENH-OB6432TSWE has the module dimension of 14.5 x 11.6 x 1.2 (mm) and Active Area size 11.18 x 5.58 (mm); it is built in with SSD1306 controller IC; it supports I2C interface, 3V power supply.



Specifications

1.1 Display Specifications

1) Display Mode: Passive Matrix

2) Display Color: Monochrome (White)

3) Drive Duty: 1/32 Duty

1.2 Mechanical Specifications

1) Outline Drawing: According to the annexed outline drawing

2) Number of Pixels: 64 x 32

3) Panel Size: 14.5 x 11.6 x 1.2 (mm)

4) Active Area: 11.18 x 5.58 (mm)

5) Pixel Pitch: 0.175 x 0.175 (mm)

6) Pixel Size: 0.155 x 0.155 (mm)

7) Weight: TBD

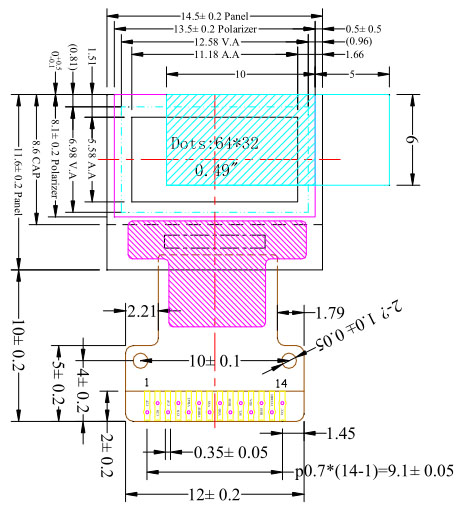

LCD Drawing

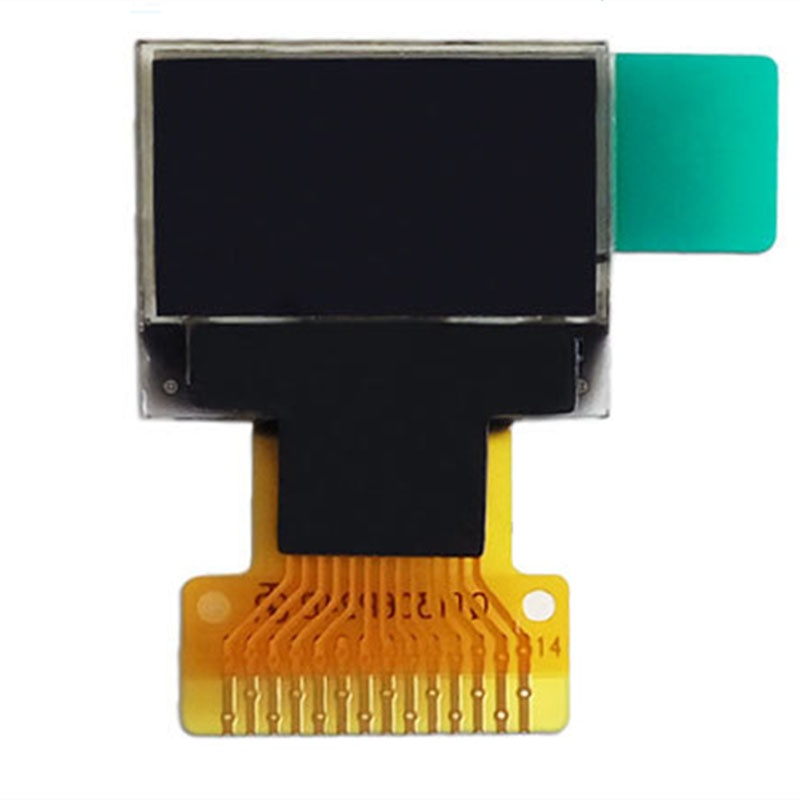

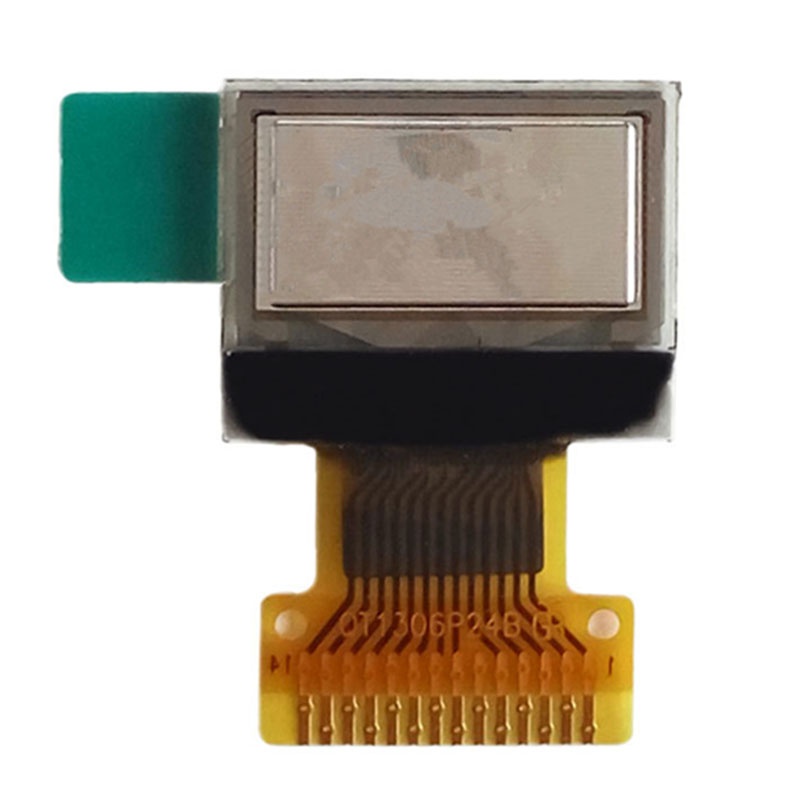

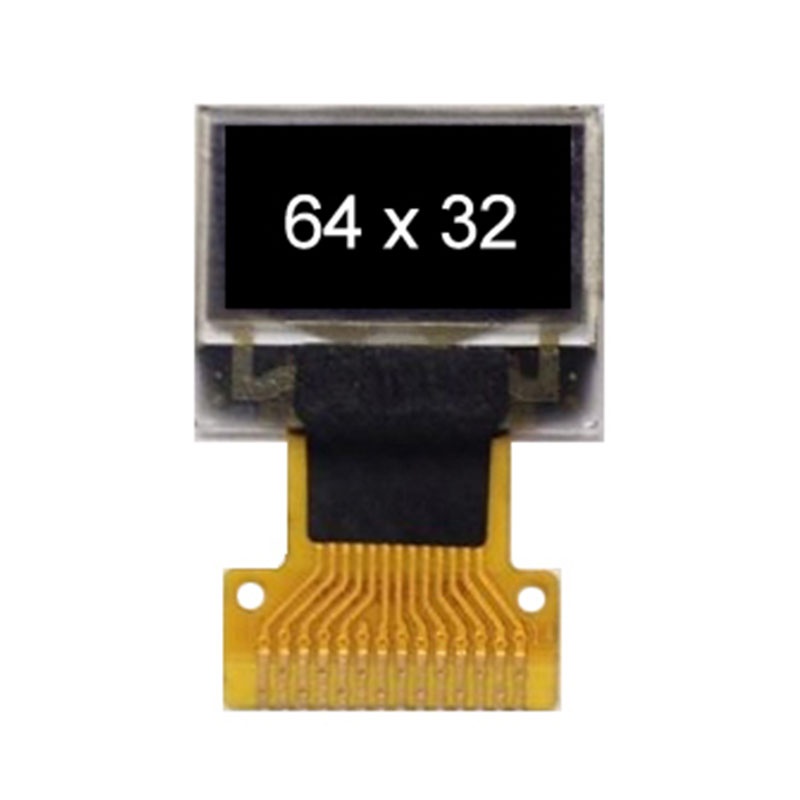

LCD Images

Applications

This small COG Graphic OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.
