Products > COG > > 128x64 COG Module LCD Display

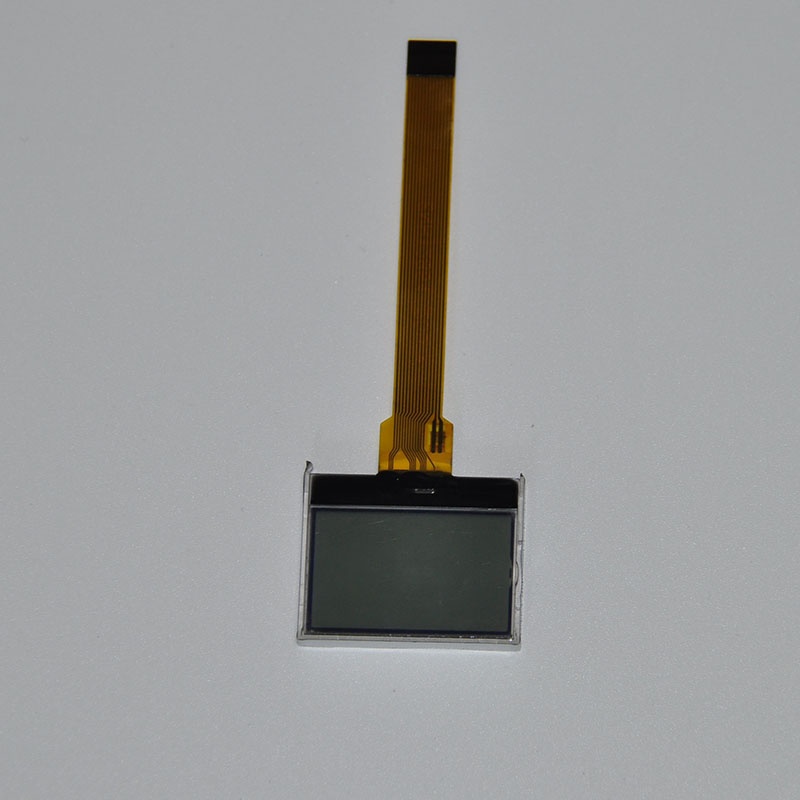

128x64 COG Module LCD Display
128x64 COG Module LCD Display 128x64 COG Module LCD Display
Product name : 128x64 COG Module LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description



ENH-DG128064-26 is a graphic 128*64 LCD module which is having the LCD module dimension of 33x26.1 mm and AA size of 26.22x14.70 mm. This ENH-DG128064-26 model is with controller UC1701x on COG. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

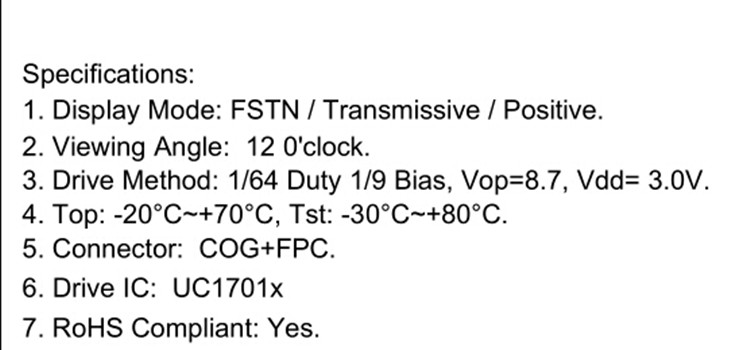

Key Features

128*64 COG Module LCD Display

Resolution

128*64

Outline Size

33*26.1 mm

Viewing Area

28*20 mm

Active Area

 26.22x14.70 mm

Connector

COG+FPC

Driver IC

UC1701x

Backlight

WLED

Display Mode

FSTN, Transmissive, Positive

Viewing Angle

12:00

Drive Method

1/64 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

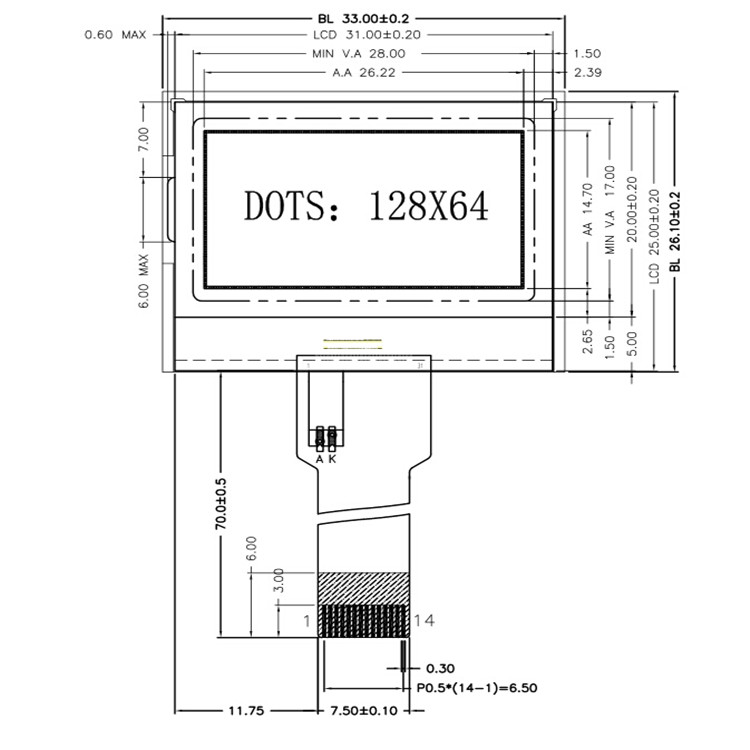

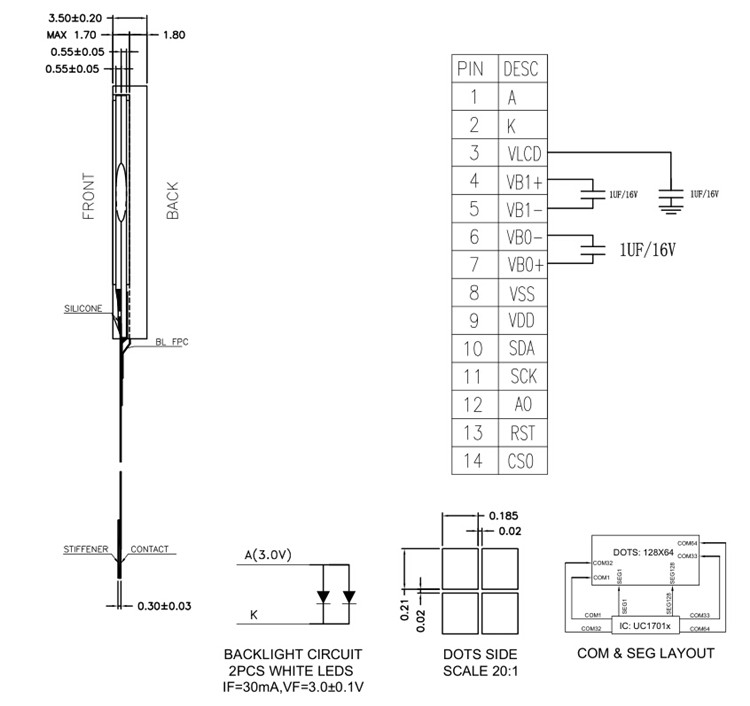

LCD Drawing
