Products > Graphic LCD > > 128x64 COB LCD module

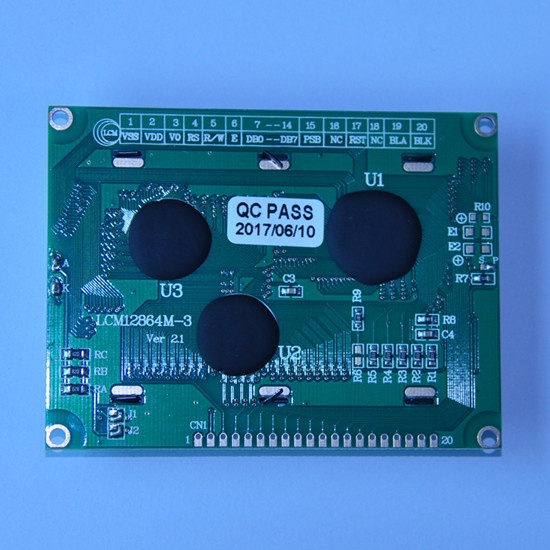

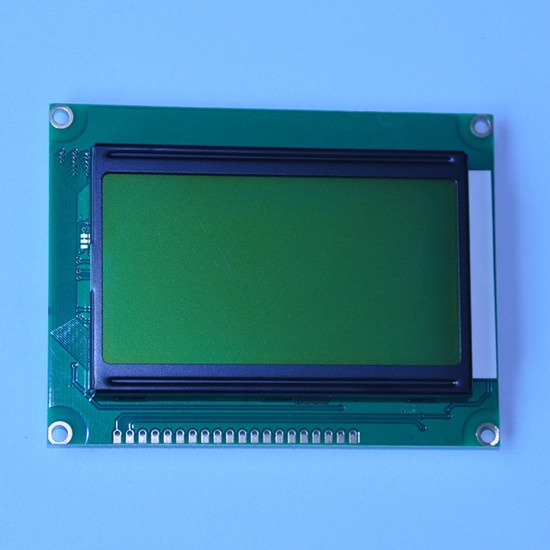

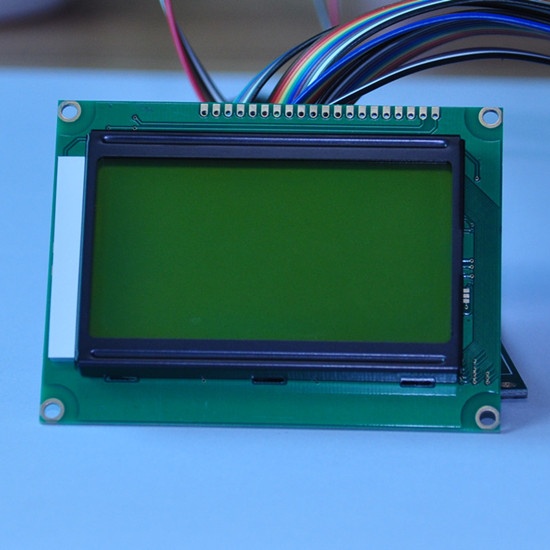

128x64 COB LCD module
128x64 COB LCD module 128x64 COB LCD module 128x64 COB LCD module
Product name : 128x64 COB LCD module
Product No. : 20171110173828
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Product Details
1.Display Type 12864 DOTS
2.LCD Type STN(Y-G),POSITIVE
3.Driver Condition LCD Module : 1/32Duty , 1/5Bias
4.Viewing Direction 6 O’clock
5.Backlight Type SIDE Y-G
6.Interface  8BIT or Serial bus MPU interface
7.Driver IC ST7920 or eqv
8.Outline Dimension  93(L) *70(W) * Max 12.5 (T)
9.Viewing Area 72(L) * 40( W)
10.Dot Size (W*H) 0.48*0.48mm
11.Dot Pitch (W*H)  0.52*0.52 mm
12.VA 72x40 mm
13.OPERATING TEMPERATURE  -20~70℃
14.STORAGE TEMPERATURE  -30~80℃
15.
