Products > Graphic LCD > > 128x64 Graphic LCD Display

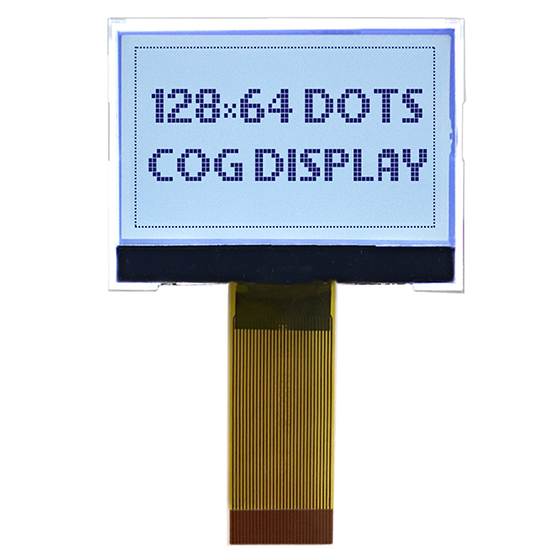

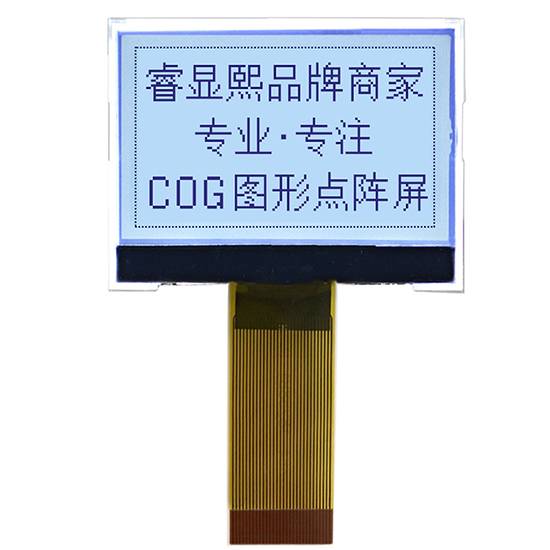

128x64 Graphic LCD Display
128x64 Graphic LCD Display 128x64 Graphic LCD Display 128x64 Graphic LCD Display 128x64 Graphic LCD Display
Product name : 128x64 Graphic LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description

ENH-DG128064-145 is a monochrome LCD 128x64 dot matrix display module which is having the Viewing Area of 44x29 mm. Some of the benefits of this display include high readability and contrast, as well as super low power consumption. This module is built in with ST7565R or other compatible IC controller, and this LCD module is available for graphic mode too.



Details of LCD

128x64 Graphic LCD Display

Resolution

128x64

Outline Size

50.2x39.2 mm

LCD Size

47.6x37 mm

Viewing Area

44x29 mm

Active Area

40.96x24.93 mm

Connector

COG+FPC

Driver IC

ST7565R

Backlight

2PCS White LED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/64 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ TO + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

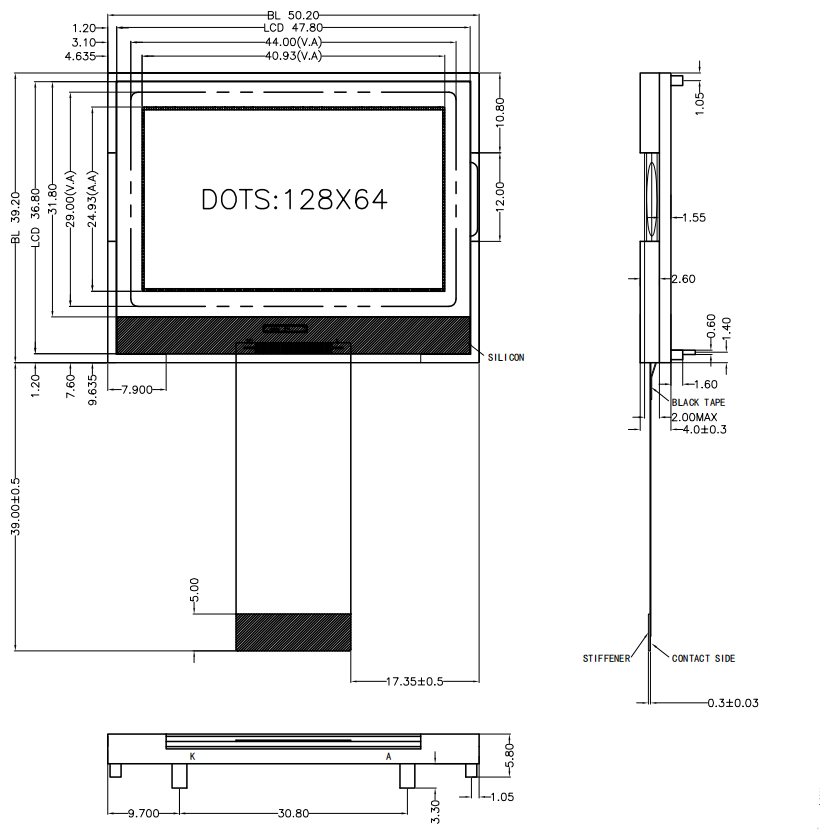

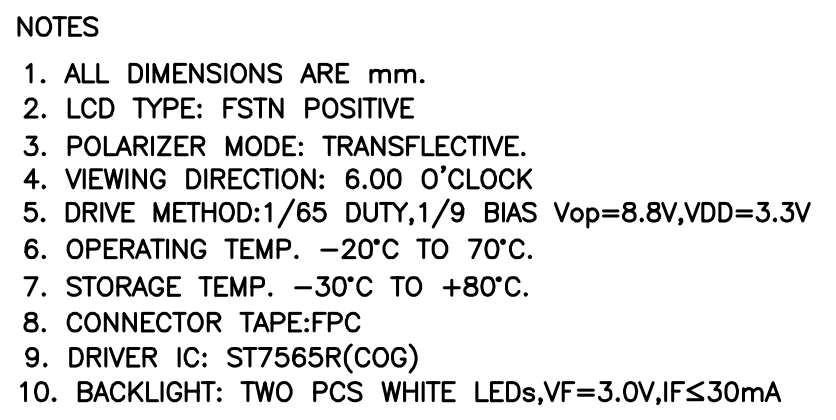

LCD Drawing

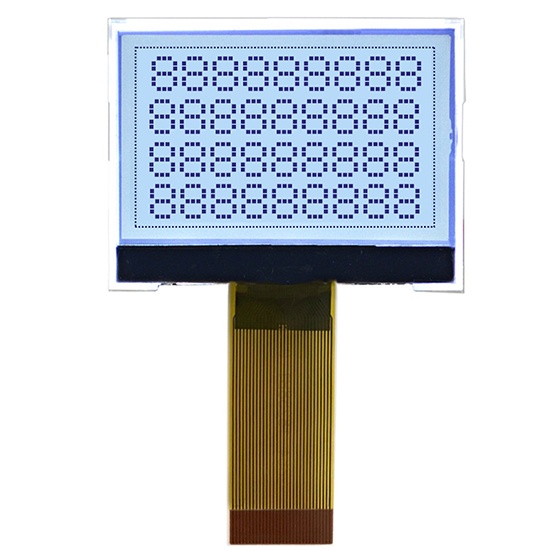

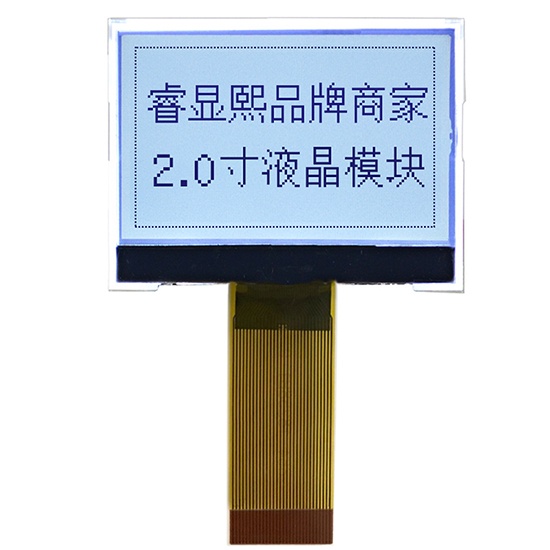

Image Details

FAQ

1.Can you send me your catalogue?

Yes. Please contact us; we can share with you our catalog by dropbox.



2.What is your price and discount?

The above price is our wholesale price. If you'd like to know more our discount policy,please feel free to contact us.



3.What is your pilicy of warranty?

We provide 1 year's warranty for our product.



4.What is your packing way?

Neutral packing and accept customer's special packaging demand. We can make an invoice as you want to help you save money.
