128x64 Graphic LCD Screen
128x64 Graphic LCD Screen 128x64 Graphic LCD Screen 128x64 Graphic LCD Screen
Product name : 128x64 Graphic LCD Screen
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



The 128*64 resolution graphic blue LCD is a STN(BLUE)/Transmissive/Negative display module. This display uses three long-life white LEDs for its backlight. This display is well suited for compact hand-held devices, or any application like money counting machine.

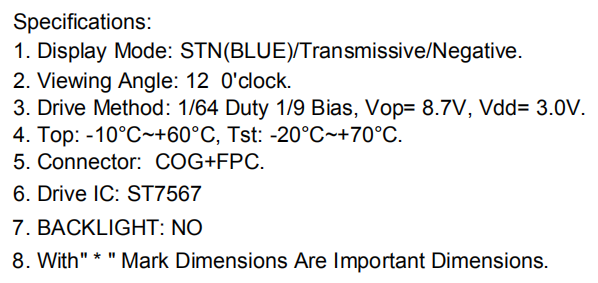

LCD Key Features

-Module Name: ENH-DG128064-77-YSPTBF

-LCD Size: 1.5 Inch

-Module Size: 33.7x30.5 mm

-View Area: 30.7x23. mm

-Active Area: 28.78x20.972 mm

-Resolution: 128x64

-Display Mode: STN(BLUE)/Transmissive/Negative

-Power Voltage: VDD=3.0V, VOP=8.7V

-View Angle: 12:00

-Drive Method: 1/64 Duty 1/9 Bias

-Connector: COG+FPC

- Drive IC: ST7567

-Operation Temperature: -10℃~70℃

-Storage Temperature:-20℃~70℃

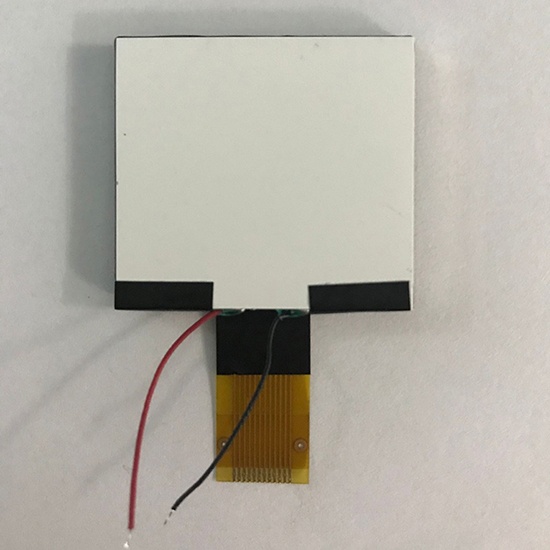

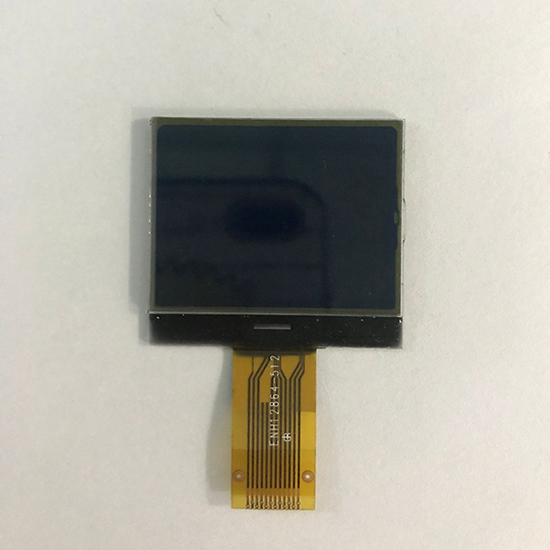

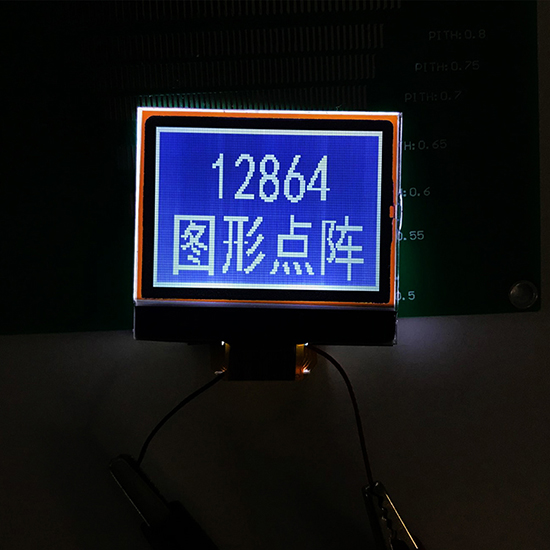

Detailed Image

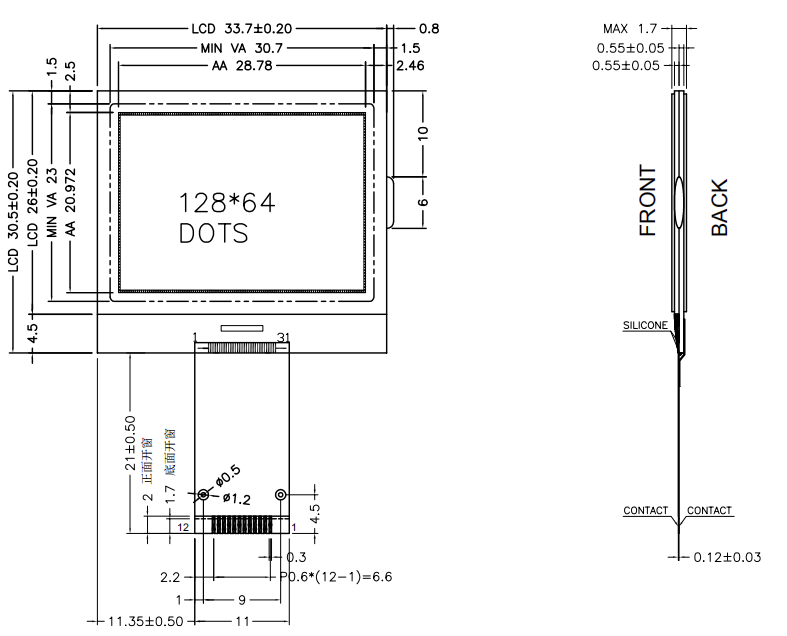

Physical Size

FAQ

# Do you have MOQ?

A: No, we do not have MOQ.

# When can I get the items?

A: It takes 5-7 working days for shipping samples. eneral speaking, all depend on order quantity and we will arrange to make production as soon as possible when order confirmed.

# May I get some discount?

A: Sure. Discount is available for large order quantity.
