Products > Graphic LCD > > 192x64 Graphic LCD Display

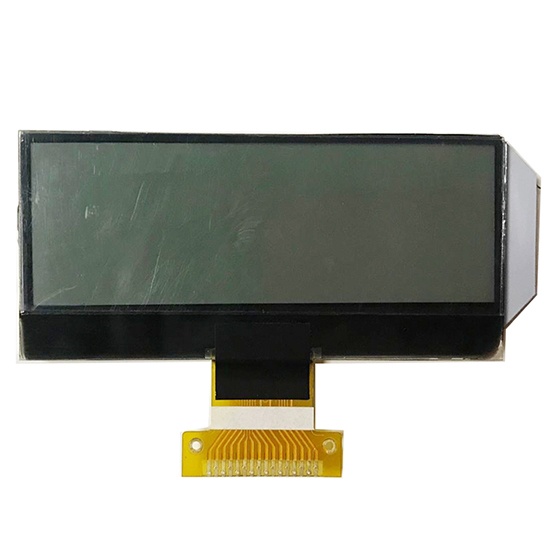

192x64 Graphic LCD Display
192x64 Graphic LCD Display 192x64 Graphic LCD Display 192x64 Graphic LCD Display
Product name : 192x64 Graphic LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This 192x64 graphic LCD module has an integrated UC1609C or compatible display controller. Since this graphic LCD is a transmissive, positive-mode display. This display is well suited for Elevators, or any application where a lot of display in a very small area is needed.

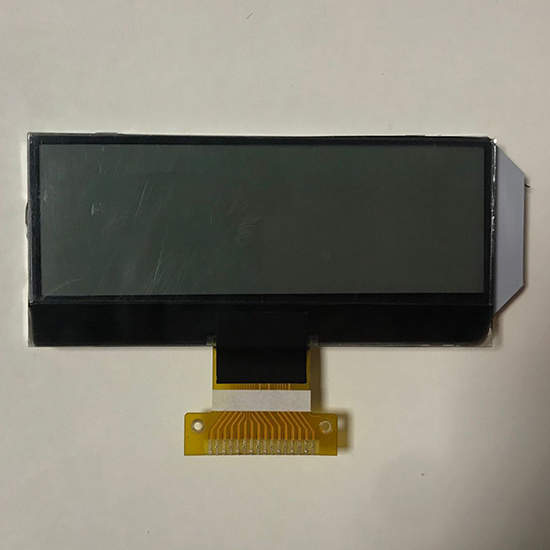

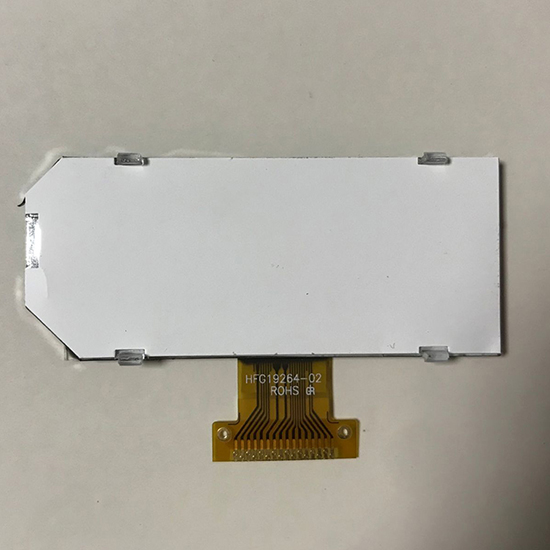

LCD Images

LCD Details

192x64 Graphic LCD Display

Resolution

192x64

Outline Size

53.9x24.4 mm

Viewing Area

51x17.2 mm

Active Area

47.98x15.98 mm

Connector

COG+FPC

Driver IC

UC1609C

Backlight

3PCS White LED

Display Mode

FSTN, transmissive, Positive

Viewing Angle

6:00

Drive Method

1/64duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ TO + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

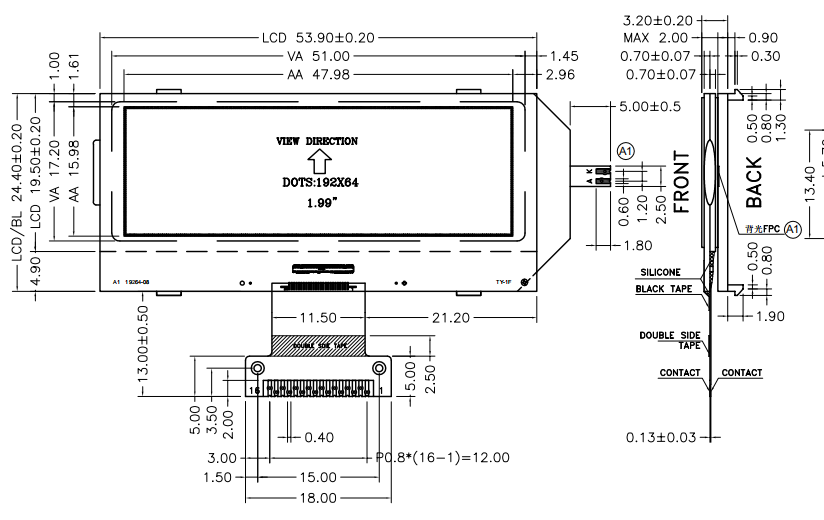

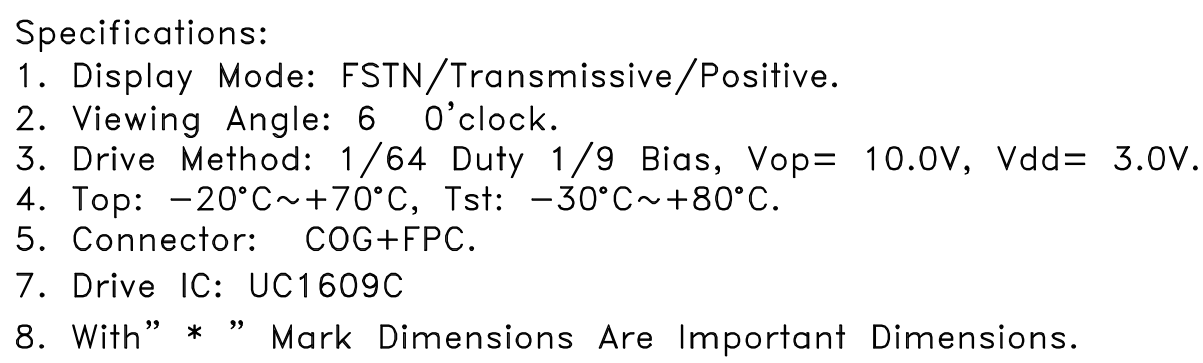

LCD Drawing

FAQ

1.Can you send me your catalogue?

Yes. Please contact us; we can share with you our catalog by dropbox.



2.What is your price and discount?

The above price is our wholesale price. If you'd like to know more our discount policy,please feel free to contact us.



3.What is your pilicy of warranty?

We provide 1 year's warranty for our product.



4.What is your packing way?

Neutral packing and accept customer's special packaging demand. We can make an invoice as you want to help you save money.
