Products > Graphic LCD > > 128x64 Graphic Low Power Monochrome LCD
128x64 Graphic Low Power Monochrome LCD
128x64 Graphic Low Power Monochrome LCD 128x64 Graphic Low Power Monochrome LCD 128x64 Graphic Low Power Monochrome LCD 128x64 Graphic Low Power Monochrome LCD
Product name : 128x64 Graphic Low Power Monochrome LCD
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



Thin, very low-power 128x64 graphic LCD display module. This graphic LCD display is visible in most lighting situations, including normal office lighting up to bright sunlight.



Since this graphic LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.



In addition to the 128x64 monochrome graphic array, there is a row of icons across the top of the display.

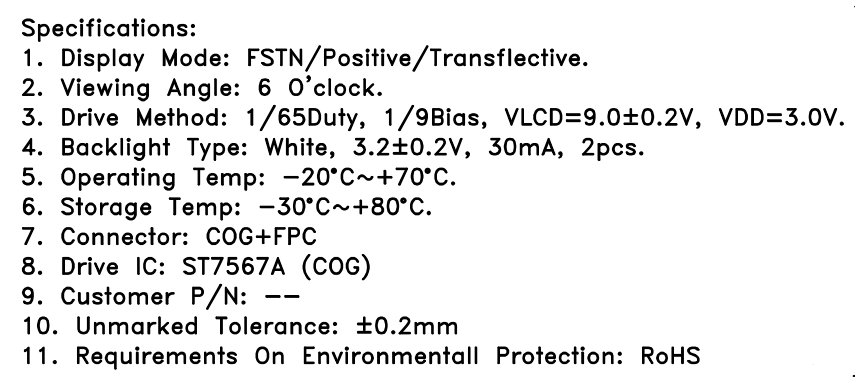

Key Features

128x64 Graphic Low Power Monochrome LCD

Resolution

128*64

Outline Size

44.5*28.86 mm

Viewing Area

39.5*20.24 mm

Active Area

38.38*19.18 mm

Connector

COG+FPC

Driver IC

ST7567A

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-20℃ TO + 70℃

Tst

-30℃ TO + 80℃

RoHS Compliant

Yes

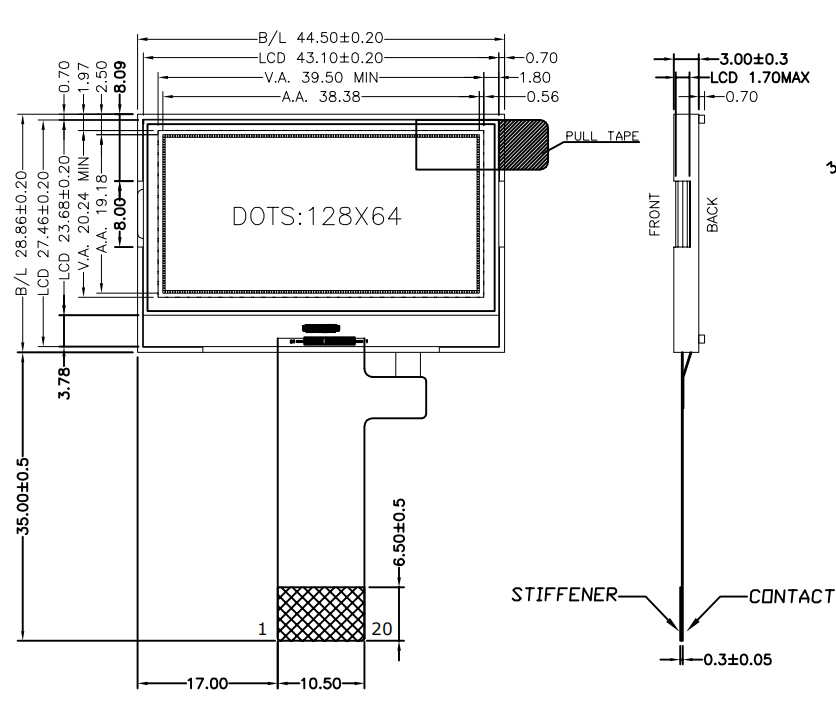

LCD Drawing

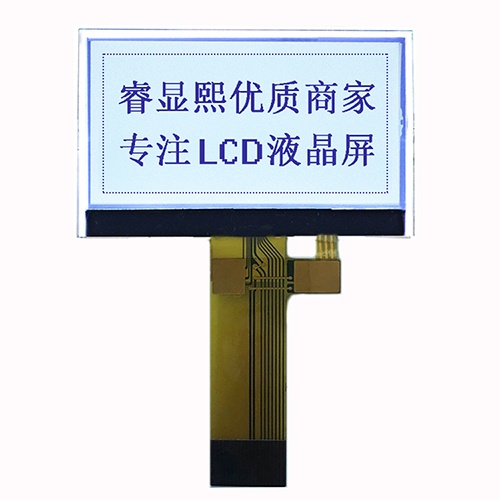

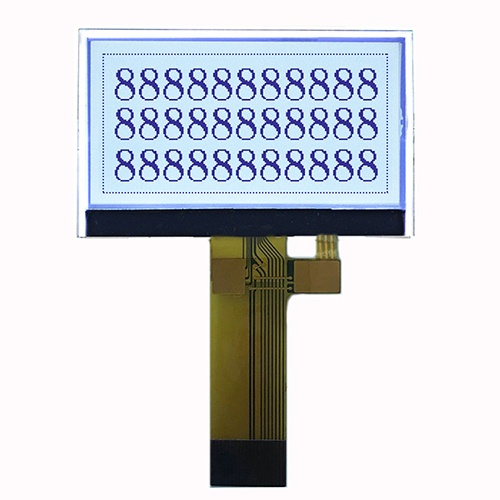

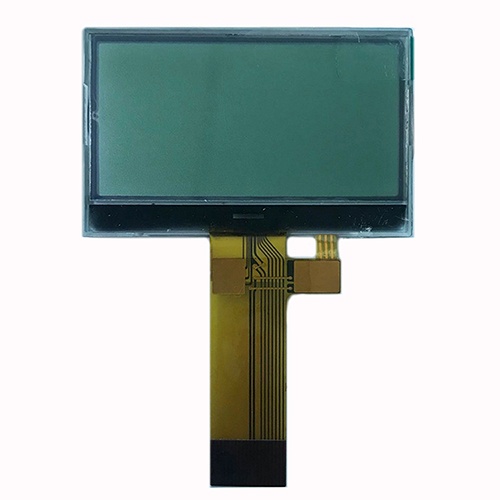

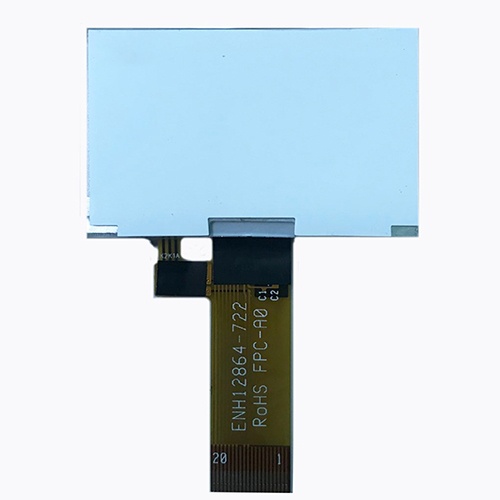

Image Details

FAQ

1.How can I get the samples?

Please send your inquiry details for us, then we will quote on the product for your reference, and then confirm the payment and drawing details by your side, when samples finished will be delivery via air.

2.How long can I get the samples?

Samples time will be take 5-7 working days.

3.Will you offer free samples?

Yes, we will provide 5-10 free samples, you just need to pay the tooling cost.

4.How to place an order?

After samples confirmed, please send us your purchase order by email, then we will send you an invoice for payment.

5. How long of mass production?

25-35 working days. It depends on the different quantity and module number.



Application

1)ETC electronic tag

2)Meters & Instrument

3)Telecommunication

4)Domestic Electrical Appliance

5)U Shield

6)Office equipment

6)Medical & health equipment

7)3D & Shutter

8)Auto electronics

9)Fuel dispensers
