Products > COB > > 128x64 COB Graphic LCD Display

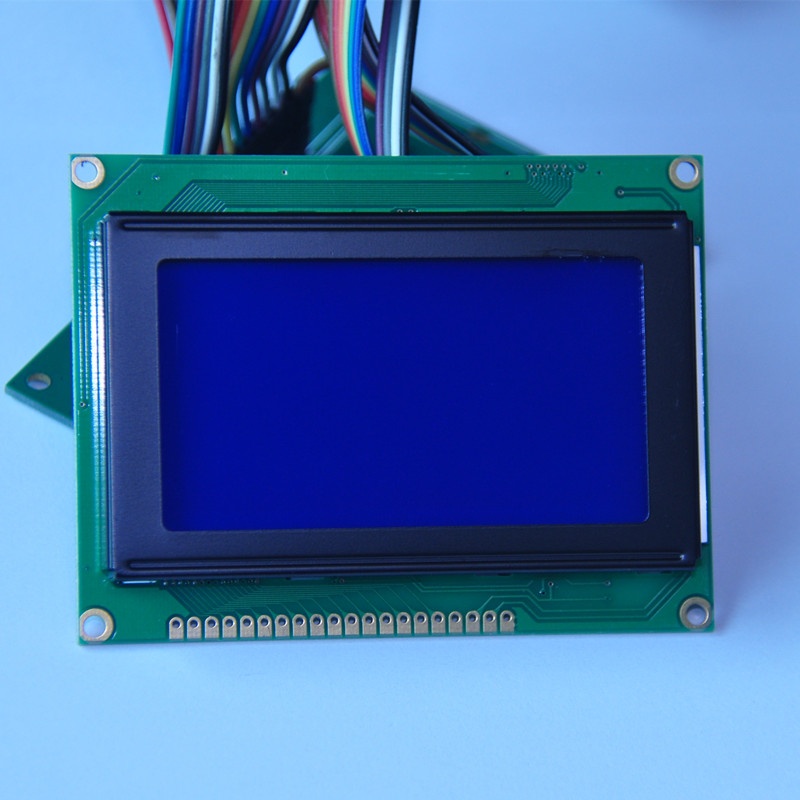

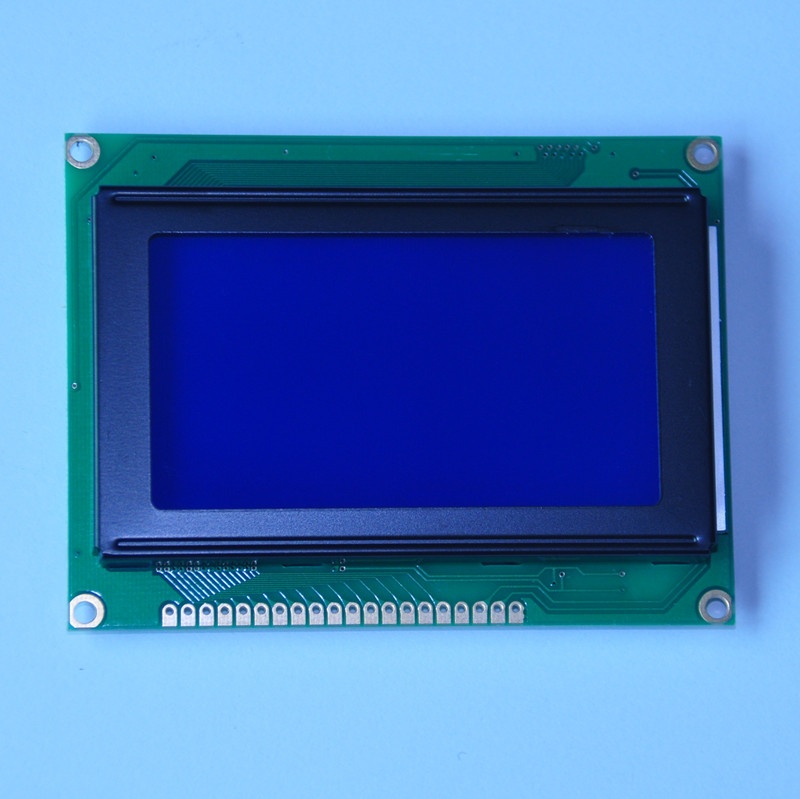

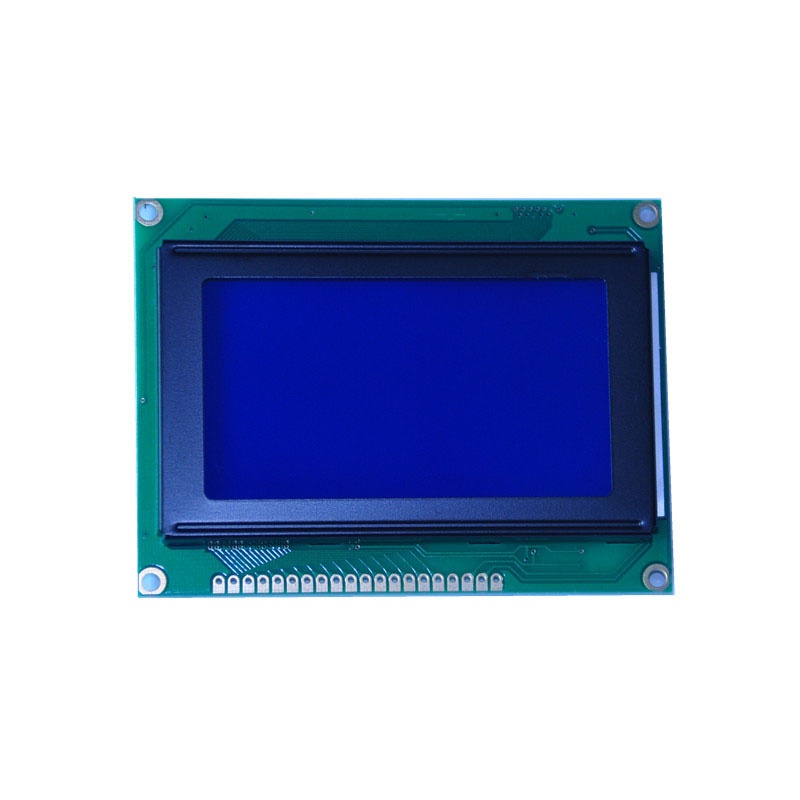

128x64 COB Graphic LCD Display
128x64 COB Graphic LCD Display 128x64 COB Graphic LCD Display 128x64 COB Graphic LCD Display
Product name : 128x64 COB Graphic LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Description



COB (Chip-On-Board) LCD modules are passive-matrix displays designed with a pcb, where the controller IC or driver is directly mounted on the back of the PCB, and the PCB is affixed to the LCD glass. The COB mounting method allows for easy assembly of the display to any design application. These COB LCD modules consist of both character and graphic LCD display types in a wide variety of sizes and colors. This is a graphic LCD display.



Details of LCD

128x64 COB Graphic LCD Display

Resolution

128*64

Outline Size

93(L) * 70(W) * Max 13.5(T) mm

Viewing Area

70.7(L) * 38.8(W) mm

Dot Pitch

0.52(W) * 0.52(H) mm

Dot Size

0.48(W) * 0.48(H) mm

Driver IC

0108, 0107

Backlight

White LED

Display Mode

STN, Negative(BLUE), Transmissive

Viewing Angle

6:00

Drive Method

1/64Duty , 1/9Bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

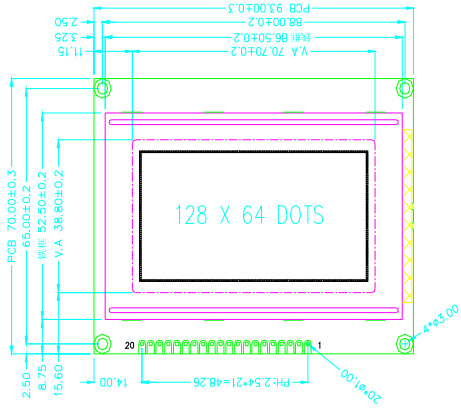

LCD Drawing


LCD Specification
