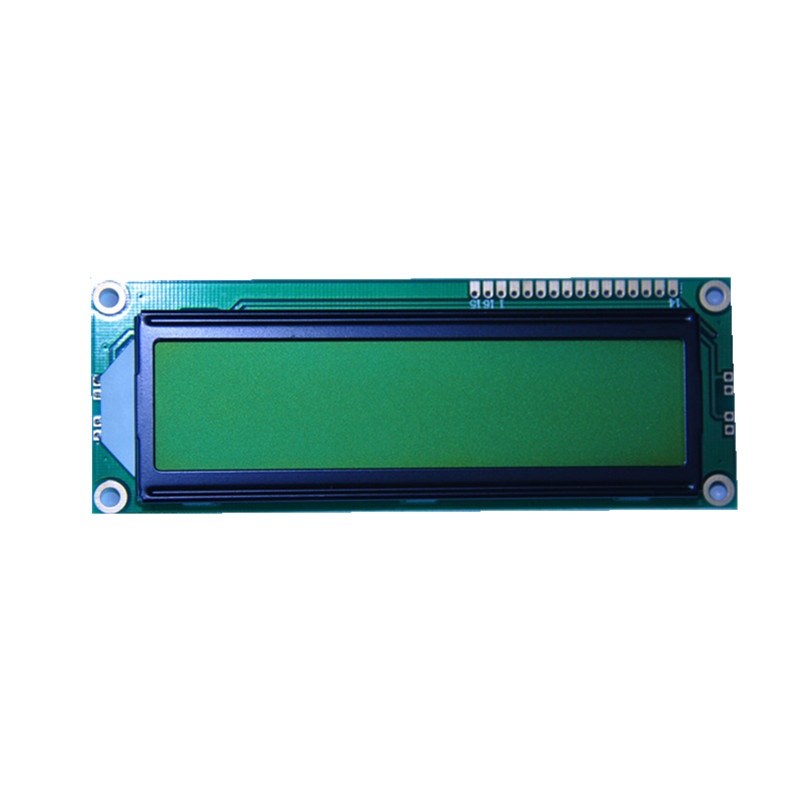

16x2 COB LCD Display Module
16x2 COB LCD Display Module 16x2 COB LCD Display Module
Product name : 16x2 COB LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 Description

The ENH1602B-Y is one of our 16 character x 2 row chip on board (COB) alphanumeric displays. These classic LCD modules are available in a multitude of LCD and LED backlight color combinations to achieve the perfect look for your product. Some of our most popular combinations are STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with either blue, amber or pure green LED backlight.

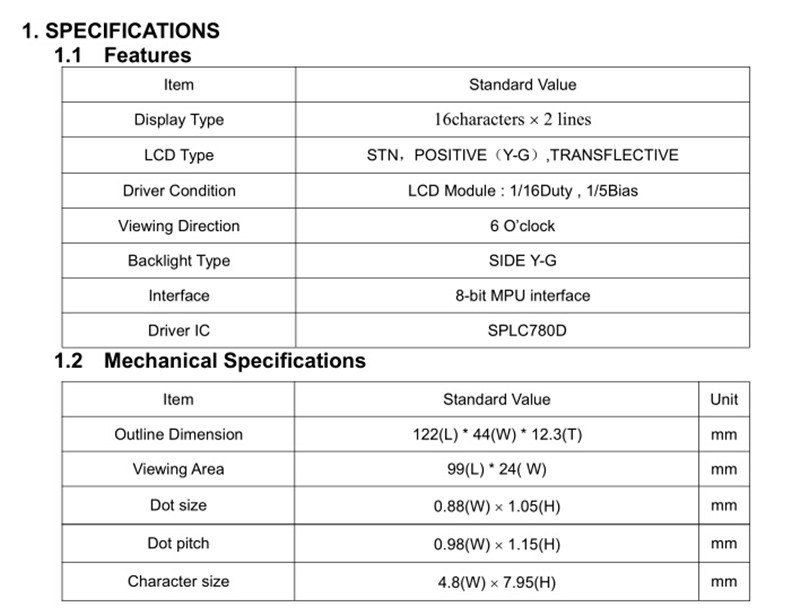

Key Features

16*2 COB LCD Display Module

Display Type

16 characters x 2 lines

Outline Size

122(L) * 44(W) * 12.3(T) mm

Viewing Area

99(L) * 24( W) mm

Character Size

4.8(W) * 7.95(H) mm

Drive Power

VDD=5.0V

Driver IC

SPLC780

Backlight

SIDE Y-G

Display Mode

STN, POSITIVEY-G,TRANSFLECTIVE

Viewing Angle

6:00

Drive Method

1/16 duty, 1/5 bias

Top

-20℃ TO + 70℃

Tst

-30℃ To + 80℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

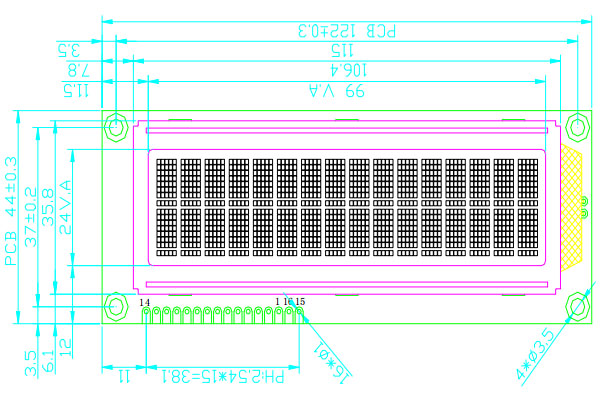

LCD Drawing

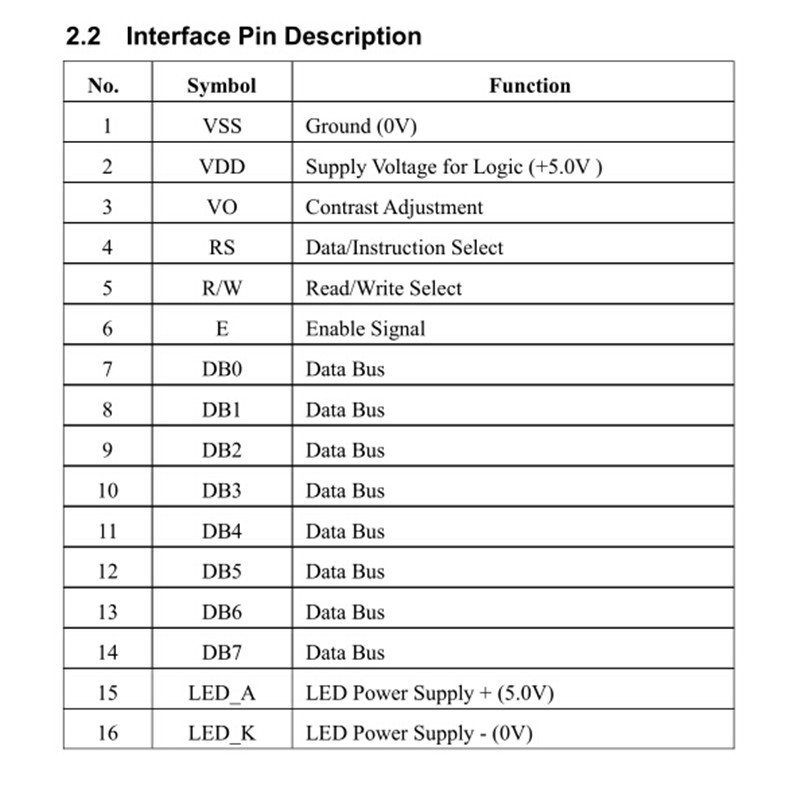

LCD PIN Description
