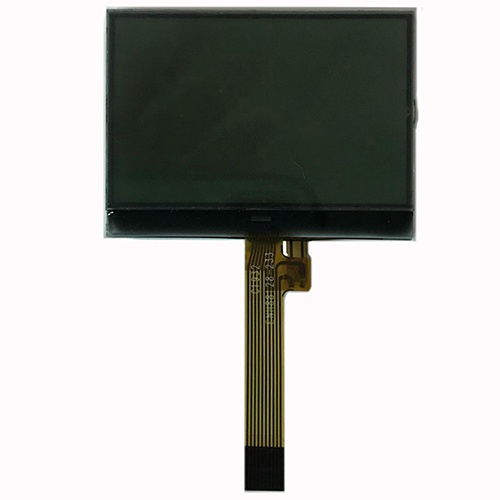

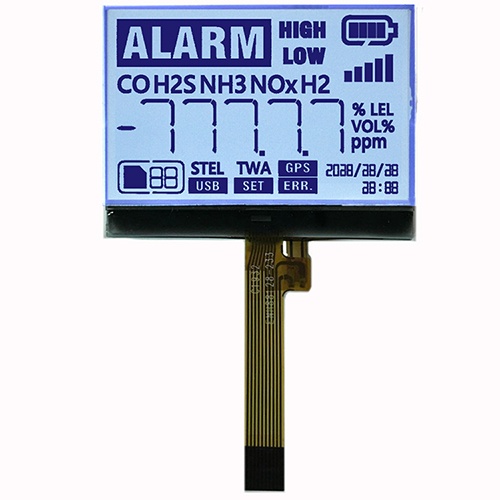

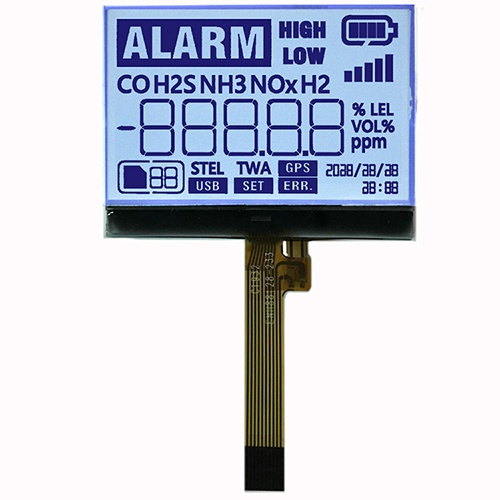

Custom 6 Digit 7 Segment LCD Display
Custom 6 Digit 7 Segment LCD Display Custom 6 Digit 7 Segment LCD Display Custom 6 Digit 7 Segment LCD Display Custom 6 Digit 7 Segment LCD Display
Product name : Custom 6 Digit 7 Segment LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

DESCRIPTION



These modules are customized product for new designs. While we do not offer any direct replacements, perhaps one of our many other displays will fit your needs. Please contact our Tech Support team for assistance. Perfect for hobby, or one new projects. As with all Crystalfontz displays, full technical support is included but we cannot accept returns.

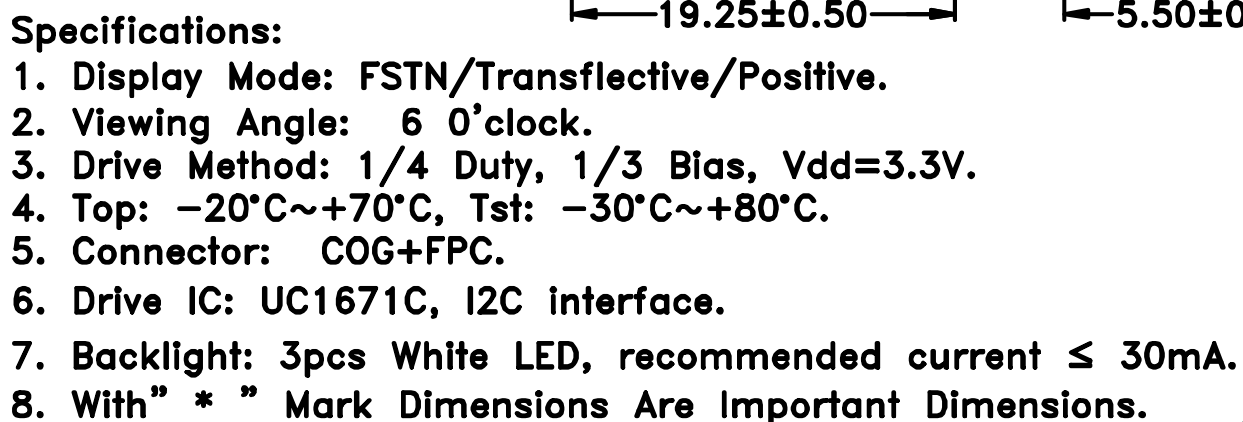

TECHNICAL SPECS

Custom 6 Digit 7 Segment LCD Display

Outline Size

44x34 mm

View Area

41x27 mm

Display Mode

FSTN/Transflective/Positive

Viewing Angle

6:00

Drive Method

1/4 duty, 1/3 bias

Top

-20- +70

Tst

-30- +80

Connector

COG+FPC

Driver IC

UC1671C

Interface

IIC

Module Weight

TBD

We have a professional technical team, any questions please share with us.



DETAILS OF CORE TECHNOLOGY

-OLED Module Test Program

-Schematic Diagram

-OLED Data Sheet

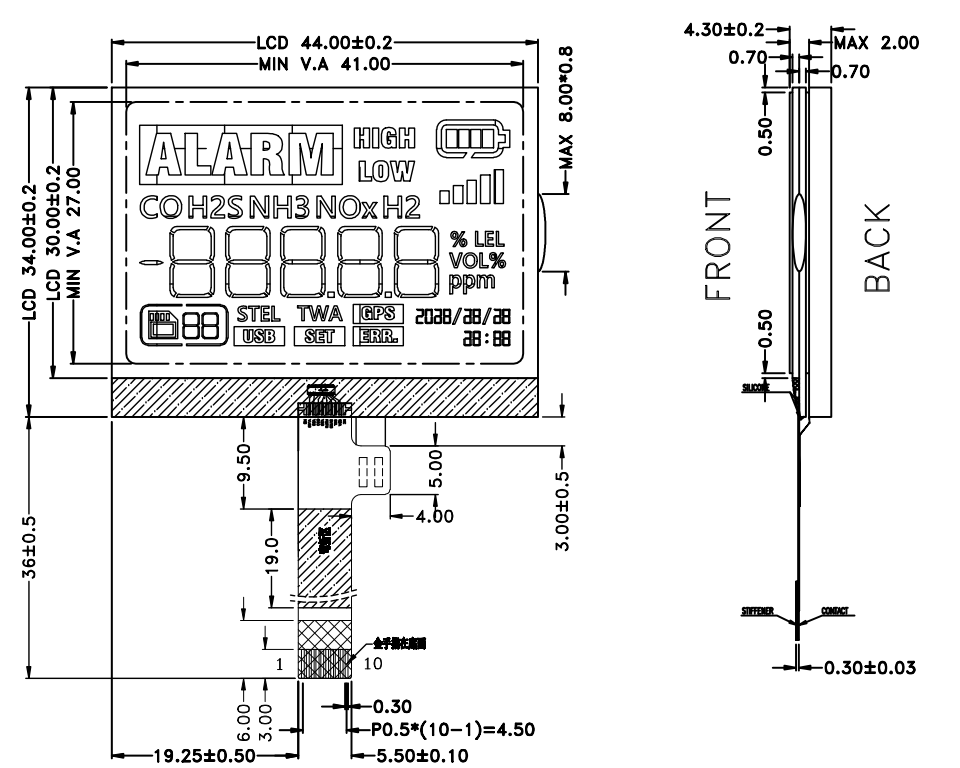

PRODUCT STRUCTURE

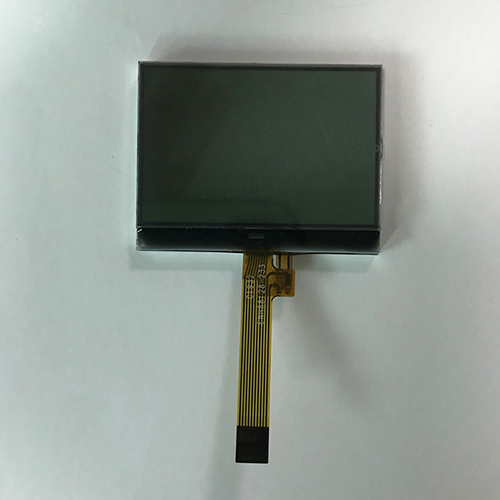

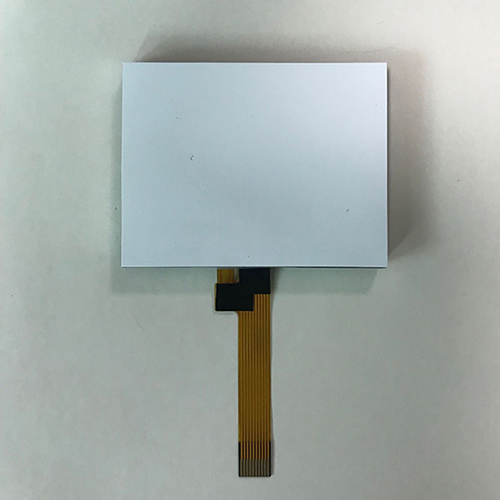

IMAGE DETAILS

APPLICATIONS

Enrich OLED Modules are perfect for car equipment, car dashboard, car audio, car clock, car door display system, water, sewing machine, meter, ammeter, instrument tuner, external hard disk, printers, wearable devices, E-cigarette, white goods, home applications, industrial instrument, DJ mixer, etc.



Besides, we provide many solutions such as I2C OLED Display, SPI OLED Display, SSD1306 OLED Display and Micro OLED, such as 0.49" OLED, 0.91" OLED, 0.95" OLED, 0.96" OLED and so on.
