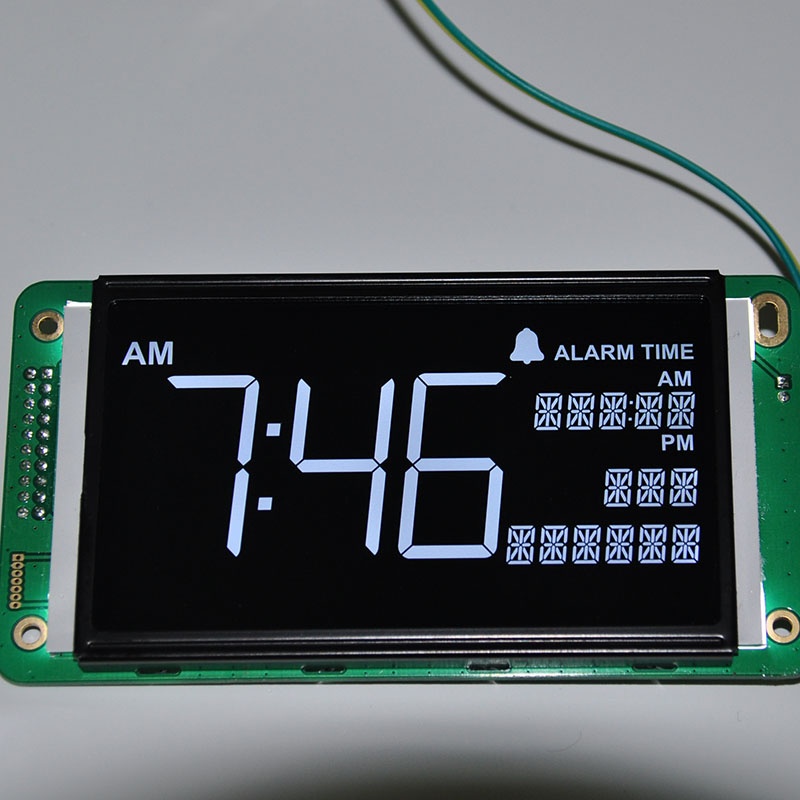

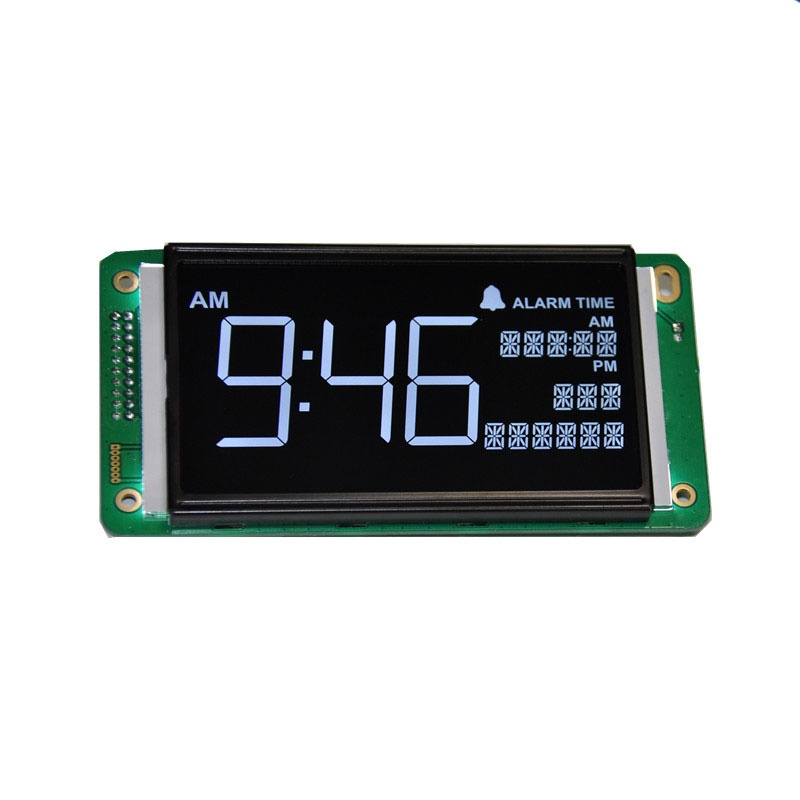

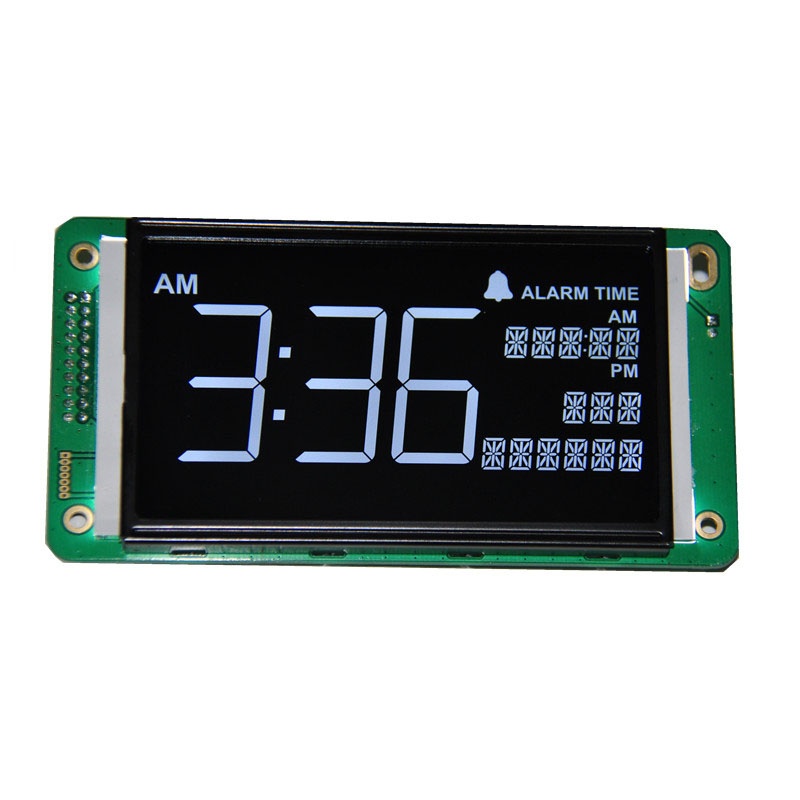

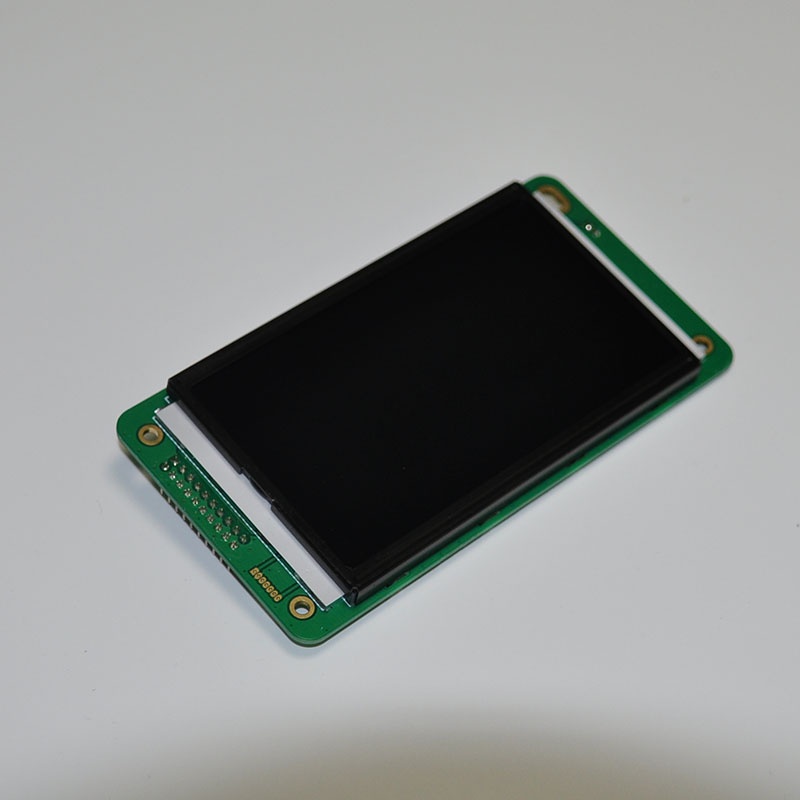

Monochrome Segment LCD Display Module
Monochrome Segment LCD Display Module Monochrome Segment LCD Display Module Monochrome Segment LCD Display Module Monochrome Segment LCD Display Module
Product name : Monochrome Segment LCD Display Module
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



ENH-VB690402-01-YTPHGN is a monochrome segment LCD display module which is having the outline size 125 x 65.5 mm and VA size of 94 x 53 mm.



Specification

Monochrome Segment LCD Display Module





Outline Size

128*65.5 mm

BL Size

108*56 mm

Active Area

94*53 mm

Connector

ZEBRA

Driver IC

HT1621

Backlight

WLED

Display Mode

VA, Transmissive, Negative

Viewing Angle

12:00

Drive Method

1/4 duty, 1/3 bias

Top

-10℃ TO + 60℃

Tst

-20℃ TO + 70℃

RoHS Compliant

Yes

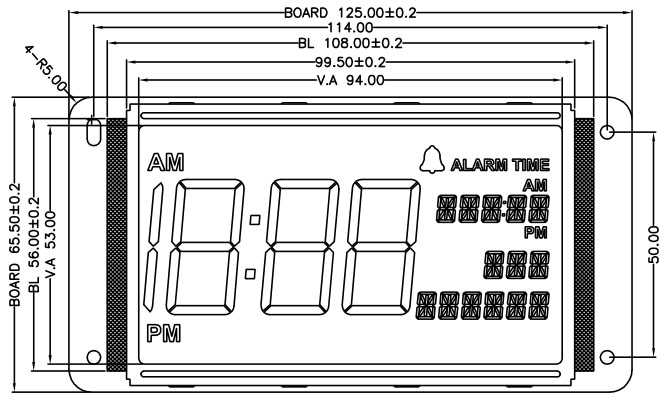

LCD Drawing

Segment LCD Advantages

1.This makes these LCD displays ideal for applications that are battery powered or solar powered.

2.They require the lowest power to drive, an estimated 2uA per Centimeter squared. Glass only displays (no backlight and no controller) require an estimated 10% of the power that is required for a LED backlight. In other words, a static display without a backlight will draw around 1mA; the same display with a LED backlight will demand from 10mA up to 25mA.

3.Most displays can be driven at 3.3V or 5V since microprocessors can operate at both voltages. 3.3V is becoming more popular since two double ‘AA’ batteries can produce between 3.0V and 3.3V.
