Products > Segment LCD > > Polygon Reflective Segment LCD Display

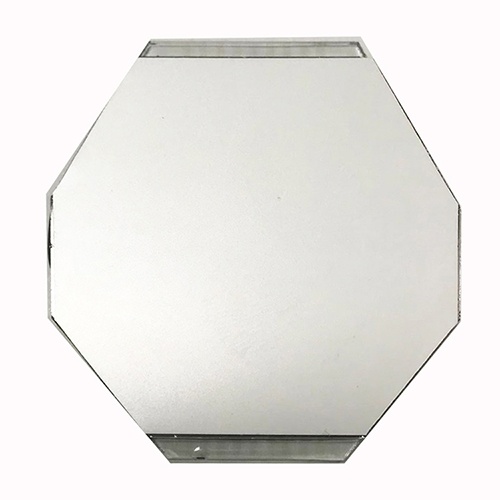

Polygon Reflective Segment LCD Display
Polygon Reflective Segment LCD Display Polygon Reflective Segment LCD Display Polygon Reflective Segment LCD Display Polygon Reflective Segment LCD Display
Product name : Polygon Reflective Segment LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



The ENH-SS912089-01 solves your entire front panel requirements in one simple, proven device.



The ENH-SS912089-01 segment LCD can also reset your system as well as power it on and off using its ATX power supply control functionality. This way the ENH-SS912089-01 can replace the ubiquitous power and reset switches while cleaning up the front panel design and simplifying your BOM and assembly.



Key Features

Polygon Reflective Segment LCD Display

Outline Size

36.7*40.7 mm

Viewing Area

33.7*33.7 mm

VDD

3.3V

Connector

ZEBRA

Backlight

WLED

Display Mode

HTN, Reflective, Positive

Viewing Angle

6:00

Drive Method

1/4 duty, 1/3 bias

Top

0℃ To + 50℃

Tst

-10℃ To + 60℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

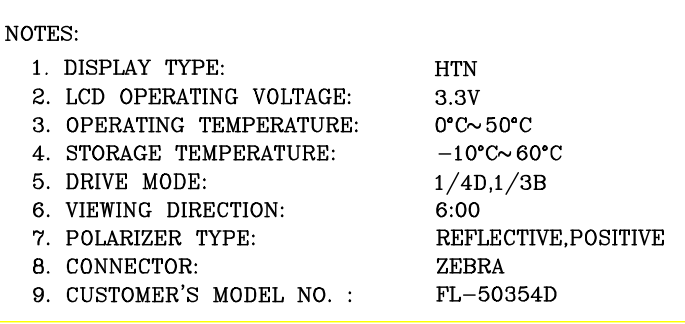

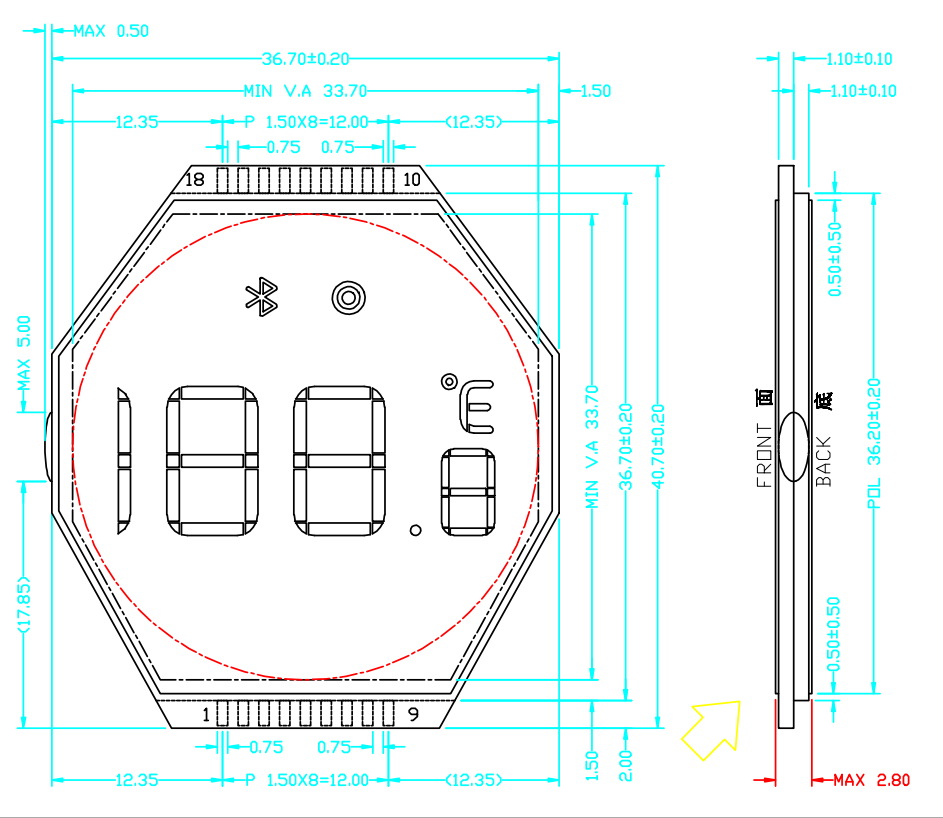

LCD Drawing

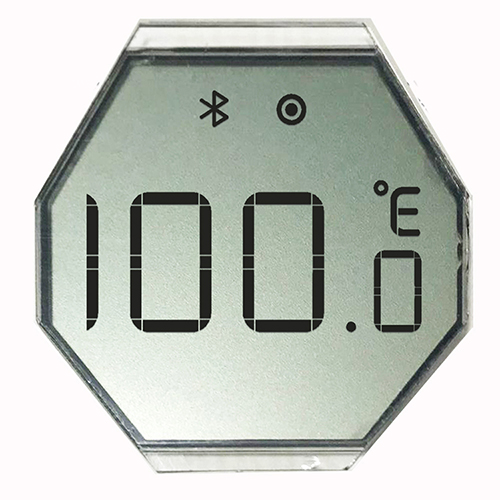

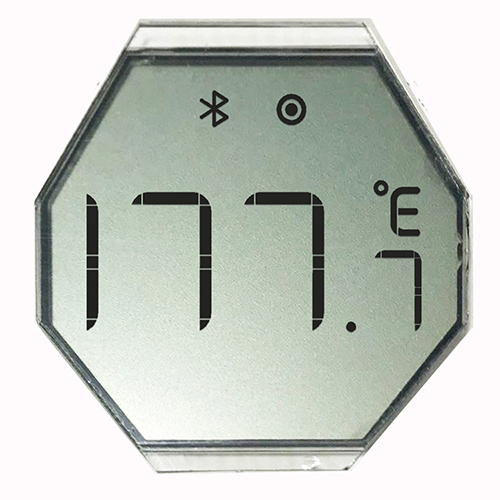

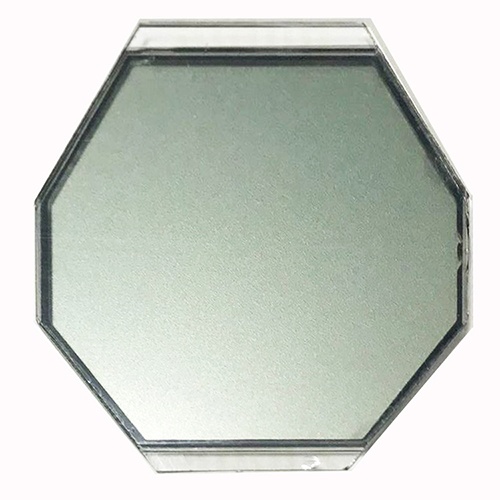

Image Details





FAQ

--What should I do if I receive a wrong part?

First, please make sure the part you purchase is the one what you need. If you do receive the damaged part because of the mistake on our side, please contact with us, we will assist you to replace the correct one for you.



--How long can I get reply after sending inquiry?

We will reply to you within 24 hours.
