Products > Graphic LCD > > 128x64 Transmissive Graphic LCD Display

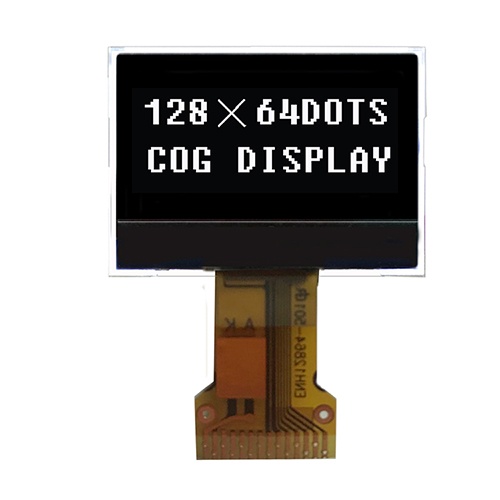

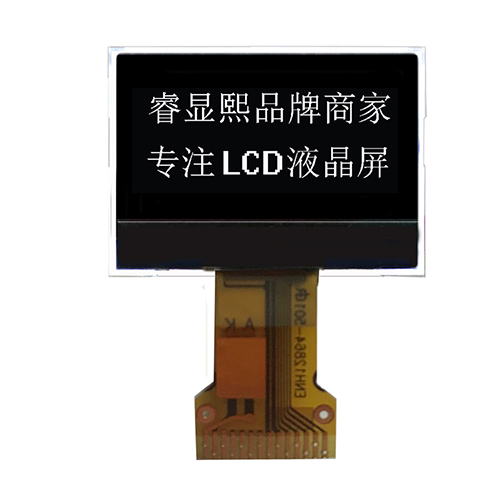

128x64 Transmissive Graphic LCD Display
128x64 Transmissive Graphic LCD Display 128x64 Transmissive Graphic LCD Display 128x64 Transmissive Graphic LCD Display 128x64 Transmissive Graphic LCD Display
Product name : 128x64 Transmissive Graphic LCD Display
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Description



This 128x64 graphic LCD display module (ENH-DG128064-45) is a small, thin, and very low-power. This display is visible in most lighting situations, including normal office lighting up to bright sunlight. Since this LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.



This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a standard 10-conductor 0.5mm pitch.



For reference only. For design purposes, please use the specifications in the datasheet.

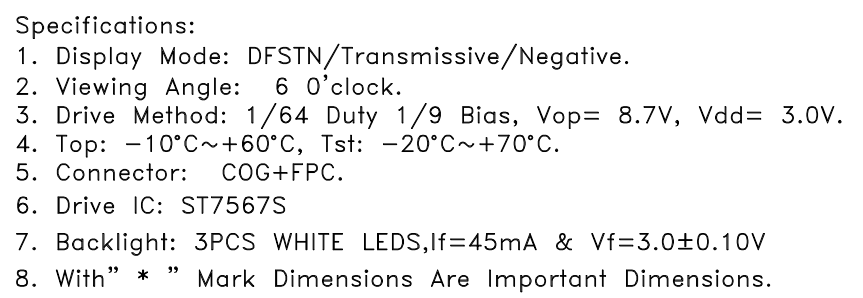

Key Features

128x64 Transmissive Graphic LCD Display

Resolution

128*64

Outline Size

30.18*21.40 mm

Viewing Area

26.58*14.86 mm

Active Area

25.58*14.06 mm

VDD

3.0V

Driver IC

ST7567S

Backlight

3WLED

Display Mode

DFSTN, Transmissive, Negative

Viewing Angle

6:00

Drive Method

1/64 duty, 1/9 bias

Top

-10℃ To + 60℃

Tst

-20℃ To + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.

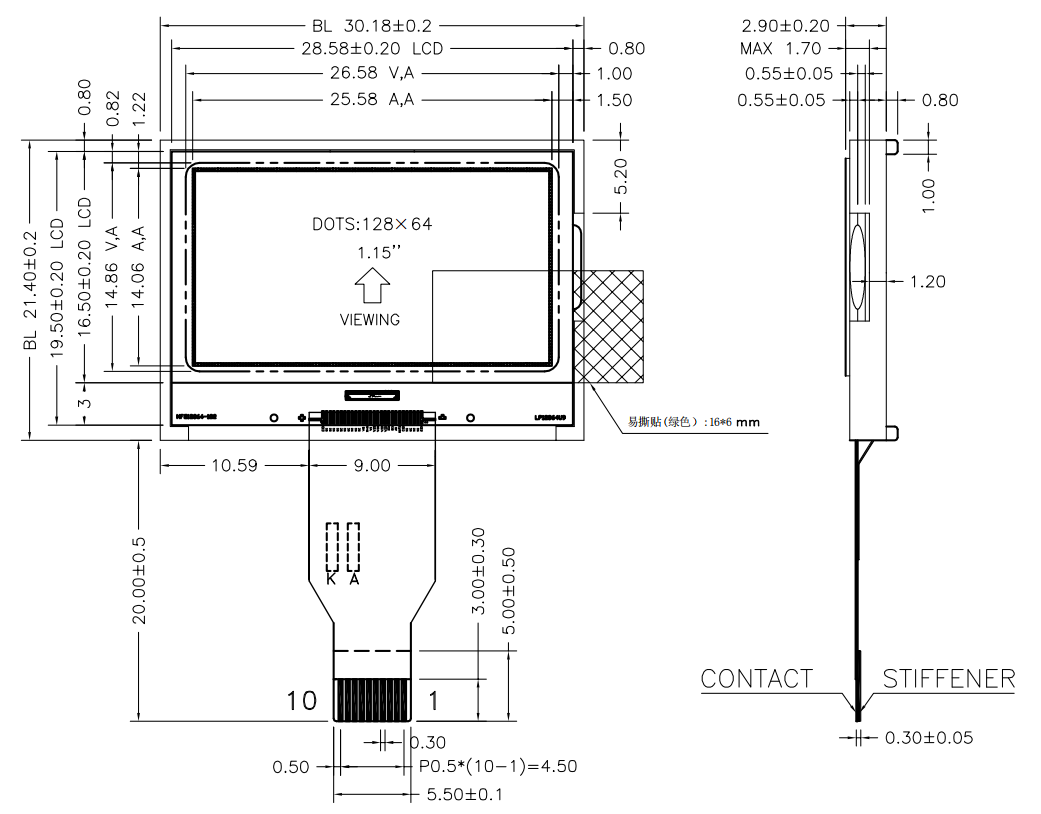

LCD Drawing

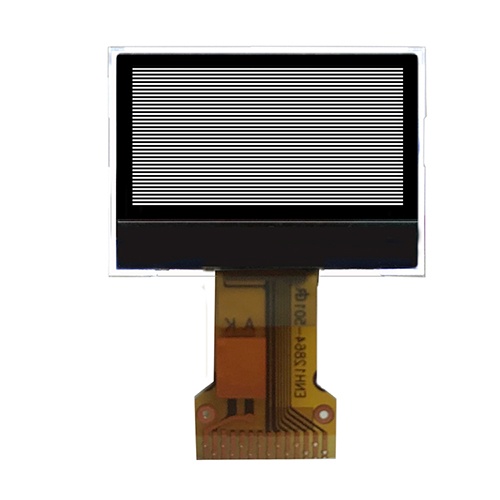

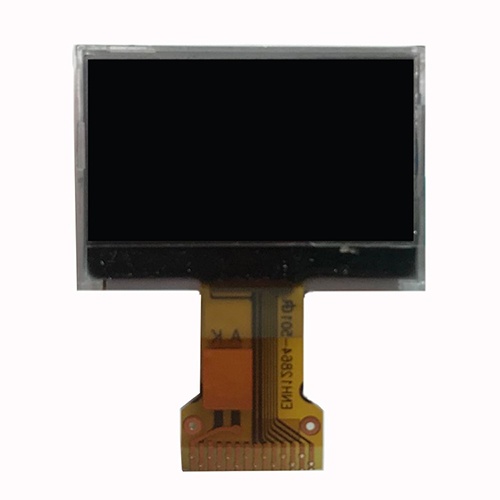

Image Details

Our Service

1. Small order would be accepted.

2. Mass production leadtime would be guaranteed.

3. Sample leadtime: 10 days;

4. Mass production leadtime: 30 days.

5. 100% product testing and inspection before shipment.

6. 100% free replacement for defective products.
